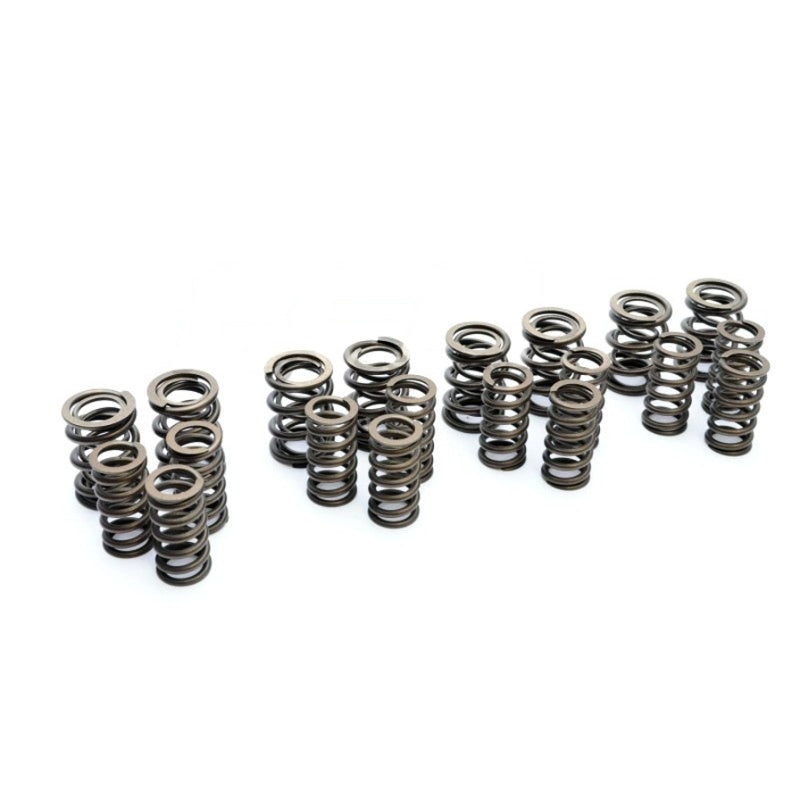

VW | Seat | Skoda | Audi S3 TT 1.8T 2.0 20V valve spring set

Part number VSA1.8T/20

High performance valve double spring kit

Audi / VW - 1.8T 20V, 2.0 20V (4 cylinder)

Valve springs data

Installed seat pressure:

Intake valve spring - 25kg, exhaust double valve spring - 36kg

Load:

Intake - 56kg@10.5mm, exhaust - 84kg@10.5mm

Max lift:

intake - up to 11mm, exhaust - up to 12.7mm

Made from chrome-silicon steel SAE9254-V

12 pcs. intake valve single springs

8 pcs. exhaust valve double springs

Fits all 4 cylinder 1.8 20V, 2.0 20V Turbo/NA VAG Group engines.

With this set the risk of valve flutter and a possible engine failure is minimized.

Recommended for engines with series and racing camshafts and over 7500 RPM.

Can be used together with standard or with titanium retainers.
