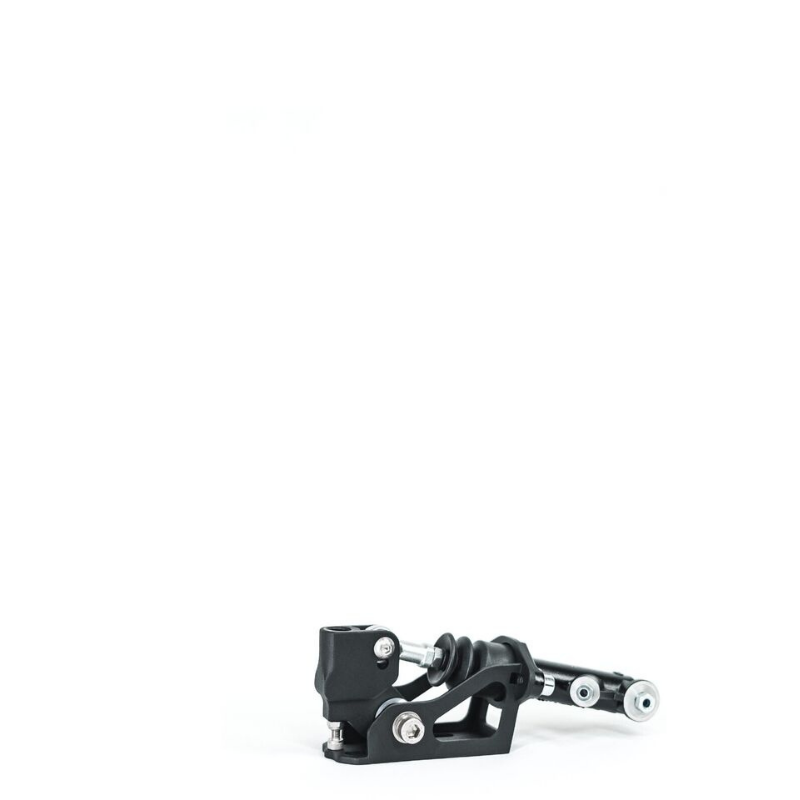

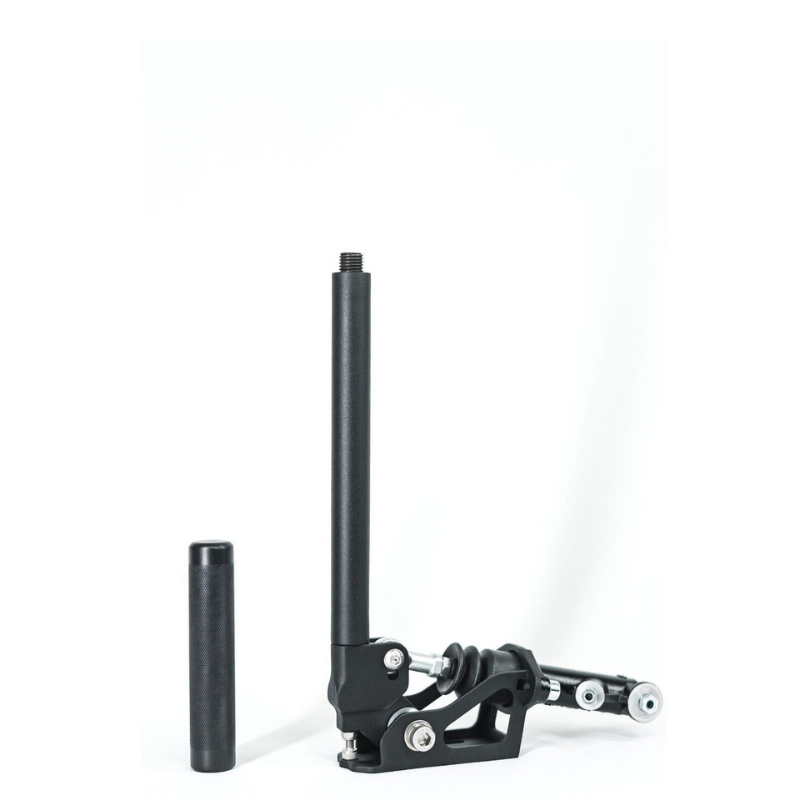

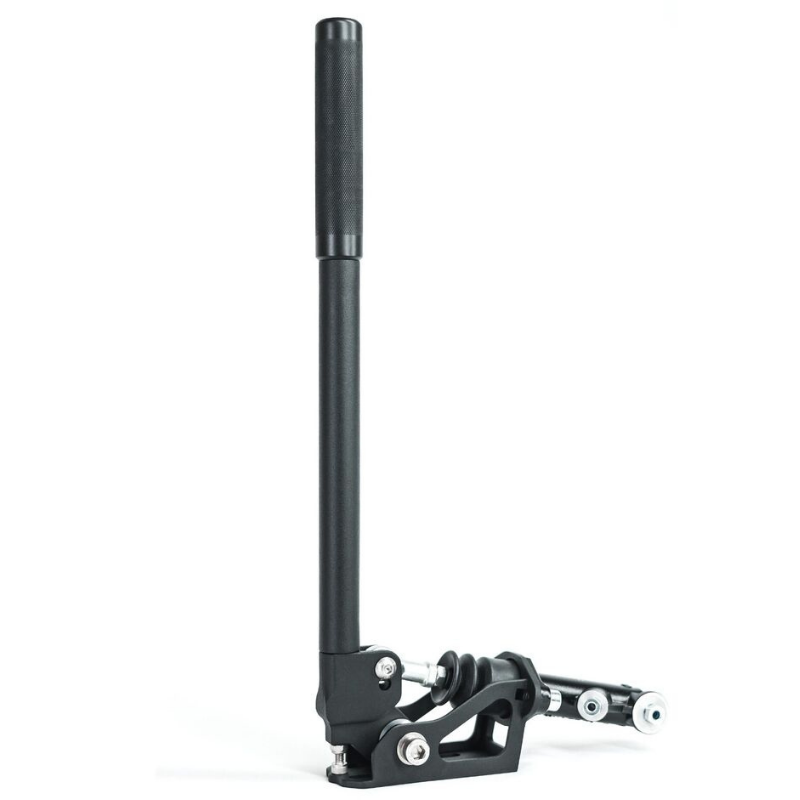

Universal Vertical Hydraulic Handbrake REMOVABLE HANDLE

Universal Vertical Hydraulic Handbrake – Removable Lever

Universal Vertical universal hydraulic handbrake designed for drift, track and motorsport use. The extremely compact base and removable lever allow a clean, discreet installation that can remain almost hidden inside the vehicle interior.

Key Features

- Compact hydraulic handbrake for drift, track and motorsport

- Removable lever for discreet installation

- Master cylinder positioned toward the driver

- Precision bearing-mounted lever and pushrod for smooth operation with minimal play

- Two pushrod positions for adjustable leverage and cylinder stroke

- Adjustable lever angle and resting position

- Horizontal or vertical master-cylinder installation

- Reinforced shortened master-cylinder pushrod

- Suitable for LHD and RHD vehicles

- Strong, high-quality motorsport construction

Kit Includes:

Complete hydraulic handbrake assembly; universal weld-in mounting plate; master-cylinder adapter plate; reinforced shortened pushrod; mounting hardware.

Master cylinder, brake lines, fittings, reservoir, brake fluid and rear caliper adapters are not included unless selected separately.

Compatibility:

Universal fitment suitable for many drift, track and custom builds, including:

BMW: E30; E34; E36; E39; E46; E8X; E9X; F2X; F3X; F8X; Z3; Z4

Nissan: S13; S14; S15; 180SX; 200SX; 240SX; 350Z; 370Z; Skyline R32; R33; R34

Toyota / Lexus: GT86; GR86; Supra; Chaser; Mark II; Altezza; IS200; IS300

Mazda: MX-5; RX-7; RX-8

Subaru: BRZ; Impreza; WRX; STI

Honda: Civic; Integra and other custom motorsport builds

Installation

This is a universal custom-fit hydraulic handbrake, not a chassis-specific bolt-on kit. Installation requires welding the supplied mounting plate and may require drilling or trimming depending on the vehicle and mounting position.

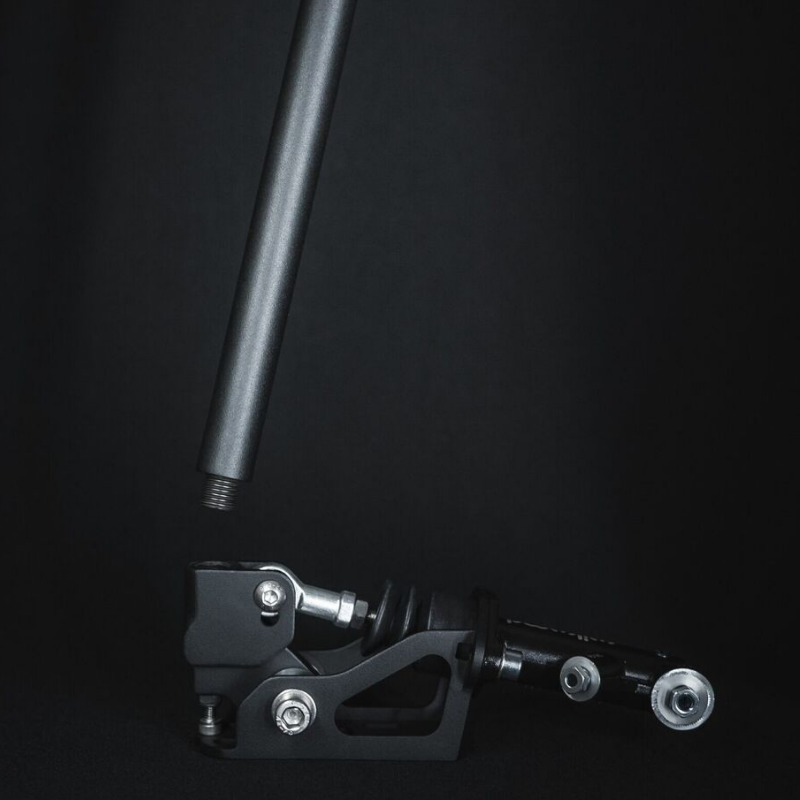

The removable lever can be quickly installed for drift or track use and removed afterward, leaving a much cleaner and less visible installation.

MASTER CYLINDER: 0.625 (NOT INCLUDED) !!!
