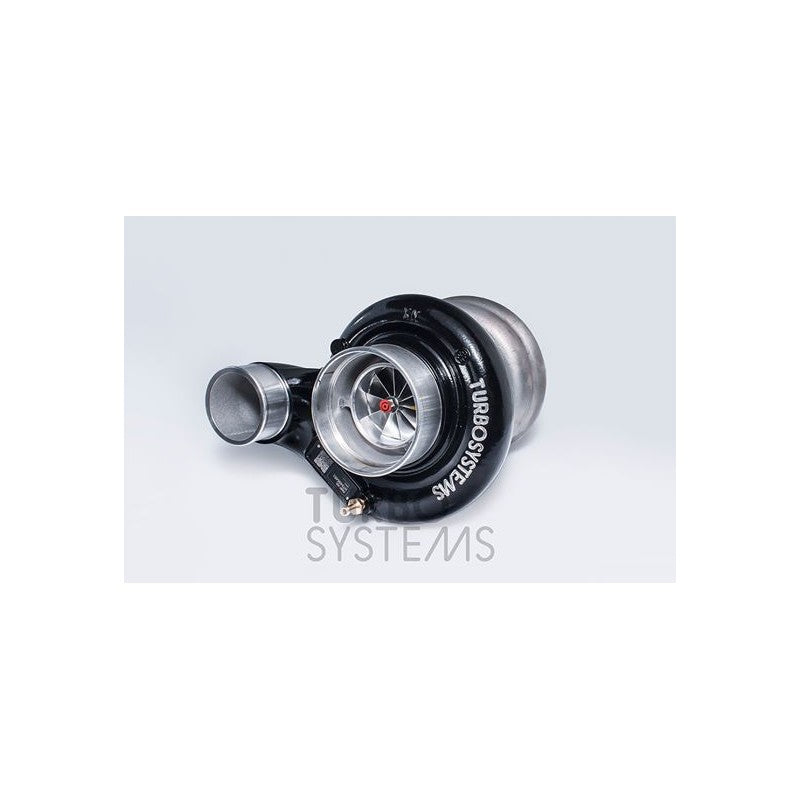

TurboSystems HTX4064B1 hybrid turbocharger

Turbocharger suitable for motorsport application
Power range: 650-750 HP
High performance turbocharger designed for heavy loads and high temperature.
Two compressor side air outlet choices - 90° (as shown in pictures) and straight for easier connection.
Stainless steel housing, dual ceramic ballbearings and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.

✪ Compressor side Technical features:

Compressor wheel: 10+0 blades machined from the solid aluminium
Inducer: 64mm, Exducer: 79mm + extended tip
Intake: 100mm
Air outlet: 63mm

✪ Turbine side Technical features:

Housing: twin scroll, 16cm2 / AR: 0.90
Turbine wheel: 10 blades
Inducer: 76mm
Exducer: 64mm
Flange: T4 twin scroll
Exhaust connection: 3" V-band clamp
