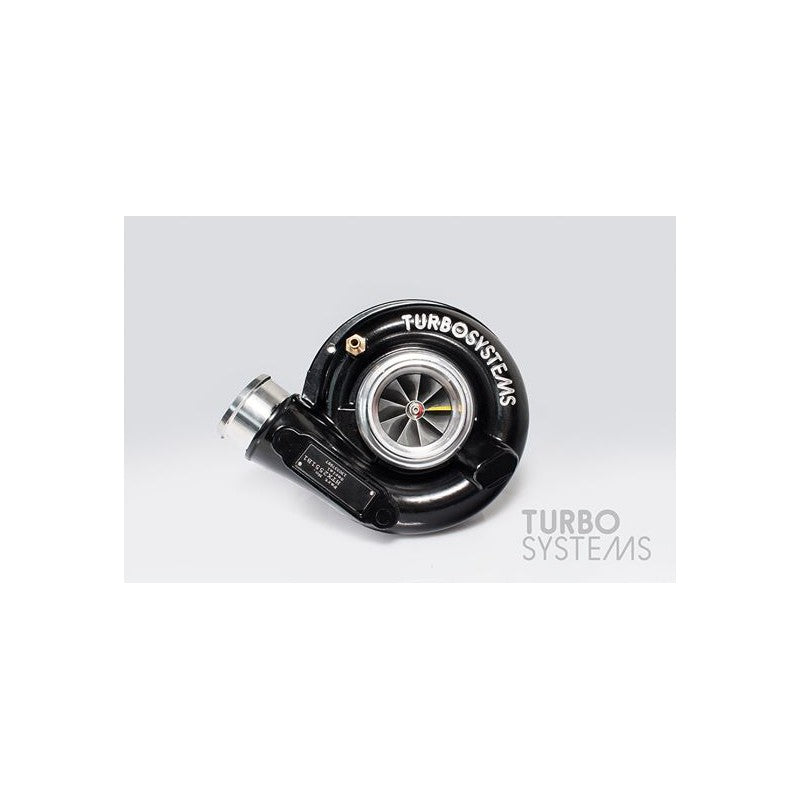

TurboSystems HTX2551B1 hybrid turbocharger

Turbocharger suitable for motorsport application
Power range: 350-450 HP
High performance turbocharger designed for heavy loads and high temperature.
Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.

Cooling: Water cooled bearing housing with 2 M14x1.5 ports
Bearings: Dual ceramic ball bearings
Compressor air Intake diameter: 63mm (2,5")
Compressor air Outlet diameter: 51mm (2")
Flange: T25 / T2
Exhaust connection: 3" V-band clamp
Ported shroud compressor housing
AN4 oil inlet with integrated oil restrictor

✪ Compressor side Technical features:

Compressor wheel: 9+0 blades machined from the solid billet
Inducer: 51mm
Exducer: 63mm

✪ Turbine side Technical features:

Housing: 8cm2 / AR: 0.61
Turbine wheel: 9 blades
Inducer: 54mm
Exducer: 47mm
