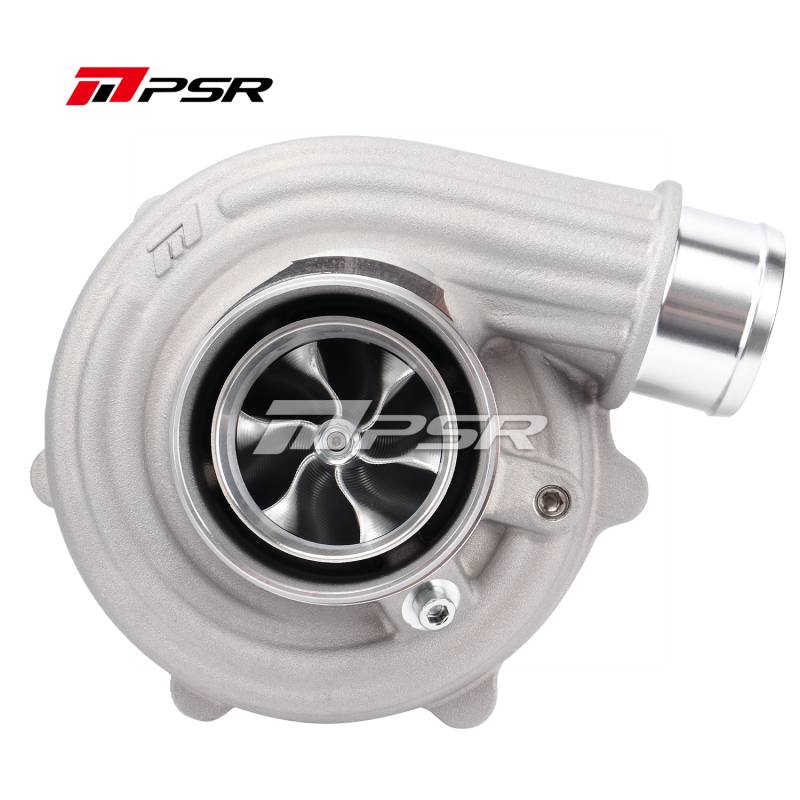

Pulsar 6862A Dual Ball Bearing Turbocharger 1050HP Dual V-band 1.01A/R

Curved point milled billet compressor wheel for improved airflow and efficiency
A series Turbine wheel with slim nose and hub for reduced weight and faster spool-up
Decentered blades on turbine wheel for improved gas flow ability and reduced turbo lag
Newly designed Anti-Surge compressor housings with integrated speed sensor port and boost reference port for improved performance monitoring and control
Dual ball bearing system for improved durability, stability, and reduced friction resulting in enhanced performance and longevity

Information:

Curved Point Milled Compressor Wheel: 68*84mm
A Series Turbine Wheel: 68*62mm
Compressor Inlet: 4” Hose
Compressor Outlet: 2.5” Hose
Turbine Inlet: V-BAND
Turbine Outlet: 3” V-Band
Water Ports: 2-M14 x 1.5
Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
Oil Drain: Std T3
Dual V-Band 1.01A/R
