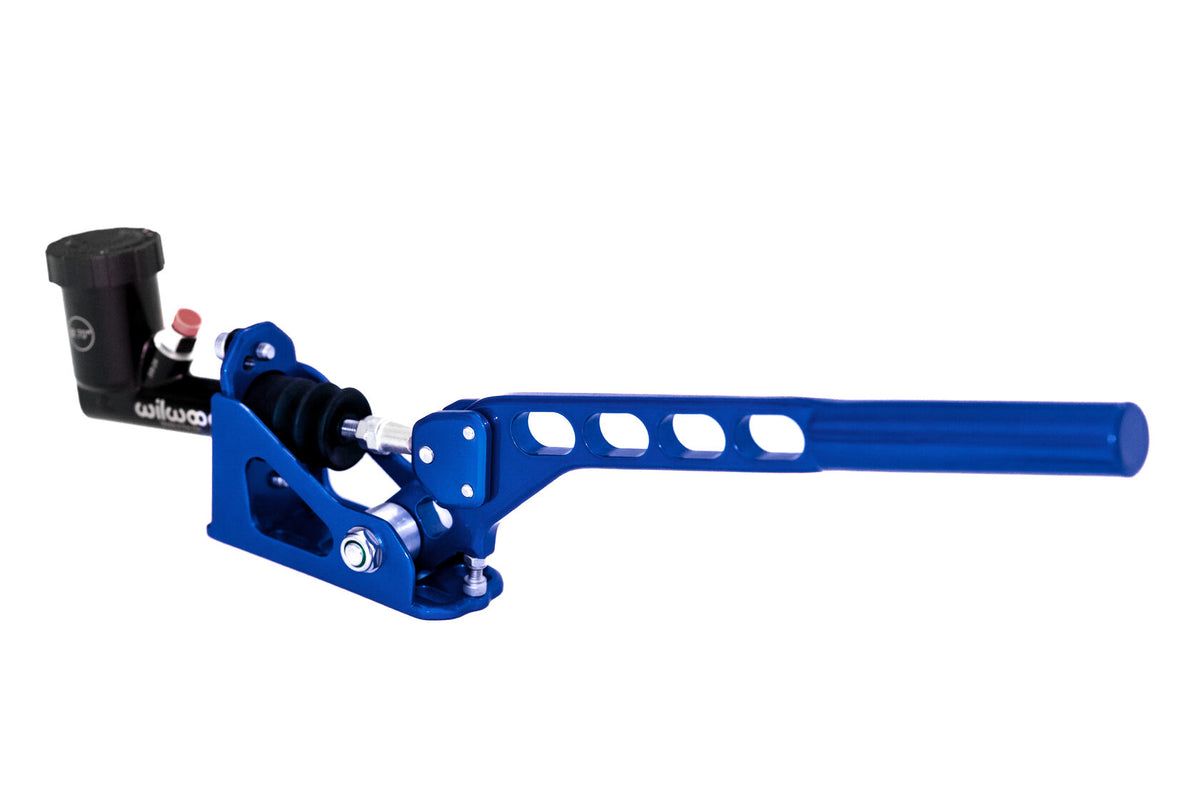

Horizontal Hydraulic Handbrake – Pull-Up Drift Rally | Motorsport

Horizontal Hydraulic Handbrake – Pull-Up Drift Rally & Motorsport

Universal pull-up hydraulic handbrake with a horizontally positioned lever, designed for drift, rally, track and motorsport use.

Unlike a traditional pull-back drift handbrake, the lever rests horizontally and is pulled upward to operate. This configuration is ideal for rally-style cockpits or installations where additional clearance is required around the gear shifter, dashboard or transmission tunnel.

Key Features

- Horizontal pull-up hydraulic handbrake

- Designed for drift, rally, track and motorsport

- Strong rigid steel construction

- Precision bearing-mounted lever and master-cylinder pushrod

- Smooth operation with virtually zero play

- Compact and strong base

- Adjustable lever angle

- Adjustable resting position and lever stop

- Longitudinal adjustment on the mounting plate

- Compatible with Wilwood and equivalent master cylinders

- Suitable for LHD and RHD vehicles

Kit Includes

Complete hydraulic handbrake assembly; universal weld-in mounting plate; reinforced shortened master-cylinder pushrod; mounting bolts, washers and fasteners.

Master cylinder, brake lines, fittings, reservoir, brake fluid and rear caliper adapters are not included unless selected separately.

Vehicle Compatibility

Universal fitment suitable for many drift, rally and track builds, including:

BMW: E30; E34; E36; E39; E46; E8X; E9X; F2X; F3X; F8X

Nissan: S13; S14; S15; 180SX; 200SX; 240SX; 350Z; 370Z; Skyline

Toyota / Lexus: GT86; GR86; Supra; Chaser; Mark II; Altezza; IS200; IS300

Mazda: MX-5; RX-7; RX-8

Subaru: BRZ; Impreza; WRX; STI

Honda: Civic; Integra and other custom motorsport builds

Installation

This is a universal custom-fit hydraulic handbrake, not a chassis-specific bolt-on kit. Installation requires welding the supplied mounting plate and may also require measuring, drilling or trimming depending on the vehicle, interior and hydraulic line routing.

The horizontal pull-up design is particularly suitable where a conventional vertical handbrake would interfere with the shifter, dashboard or centre console.

Upgrade Your Drift or Rally Setup

Choose your preferred configuration and add the hydraulic handbrake to your cart today.

Not sure whether the horizontal version will work with your vehicle? Contact us before ordering and we’ll help you select the right setup for your build.

MASTER CYLINDER: 0.625 (NOT INCLUDED) !!!
