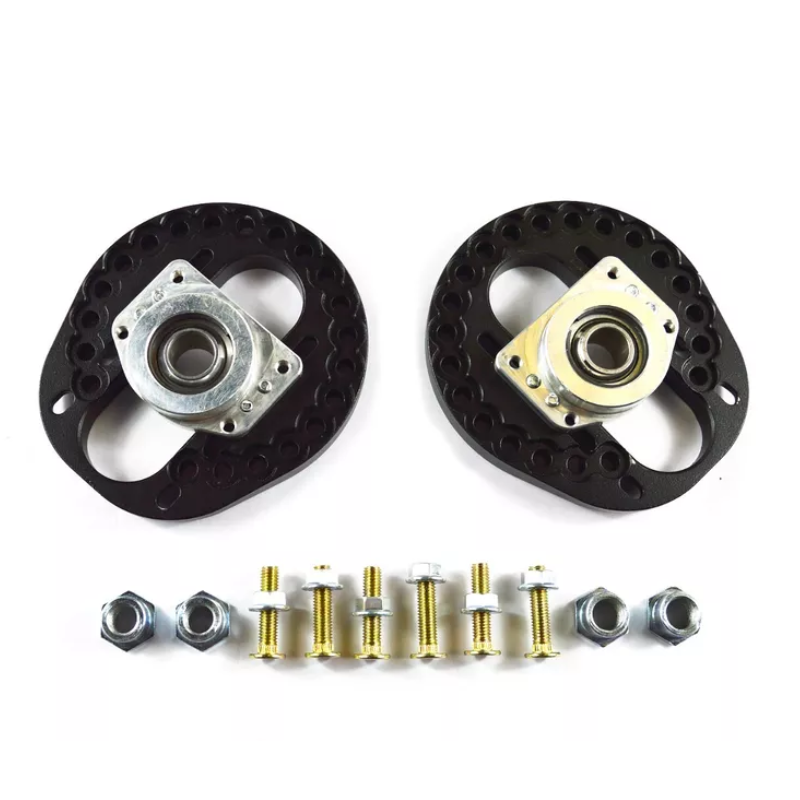

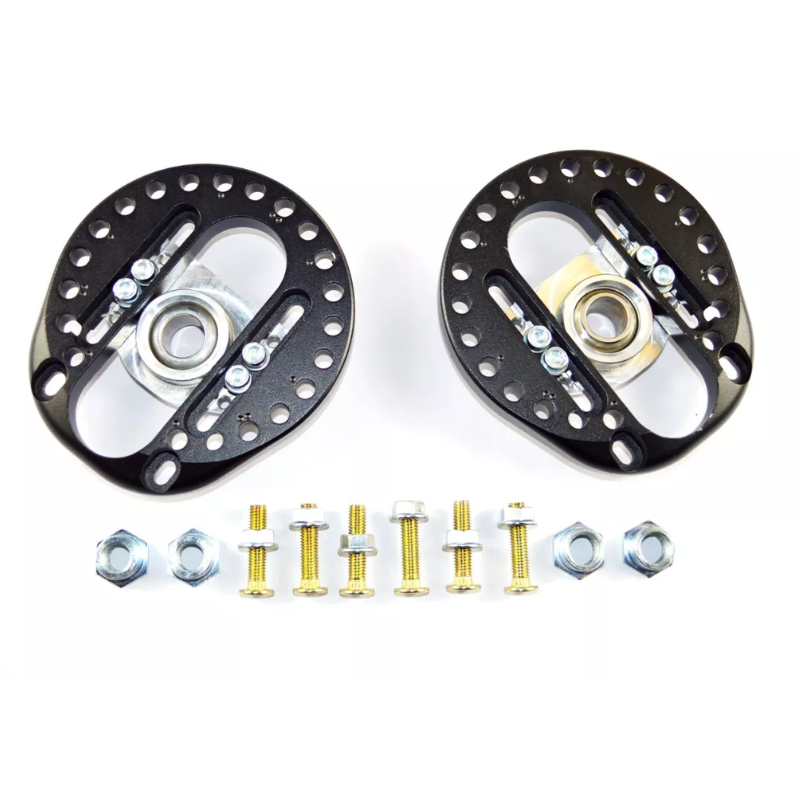

Front Camber Plates 3D for BMW E30 E36 E46 E38 E39 E90 E92 Aluminium -Pair
Front Camber Plates 3D for BMW E30 E36 E46 E38 E39 E90 E92 Aluminium -Pair
Regular price
£198.00 GBP
Regular price
Sale price
£198.00 GBP
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Upgrade your vehicle's performance and handling with front camber plates.
These precision-engineered components allow for precise adjustment of the camber angle, optimizing tire contact with the road surface for improved cornering grip and stability.
By fine-tuning the alignment settings, camber plates enhance steering response, reduce tire wear, and provide greater control during spirited driving or track use. Designed to withstand the rigors of high-performance driving, front camber plates are a must-have upgrade for enthusiasts looking to unlock the full potential of their vehicle's suspension system.
With the standard chassis, an additional 20mm spacers must be placed between the dome bearing and the plate that holds the spring.
Bottom plate:
Made of aluminium.
The thickness is 15mm.
Powder coated Black
Bearing housing:
Made of stainless steel on a CNC machine to ensure the highest quality.
Bearings:
Processed with maintenance-free Fluro to reduce the bearing play.
Made of stainless steel.
The bearing was tested for high load capacity.
The mounting screws are galvanized and in size M8 with fine thread.
The bottom bracket is designed for a damper shaft with a diameter of 18mm .
Reduction sleeves with M14 and M12 diameter are also supplied.
Do not forget to use thread lock.
