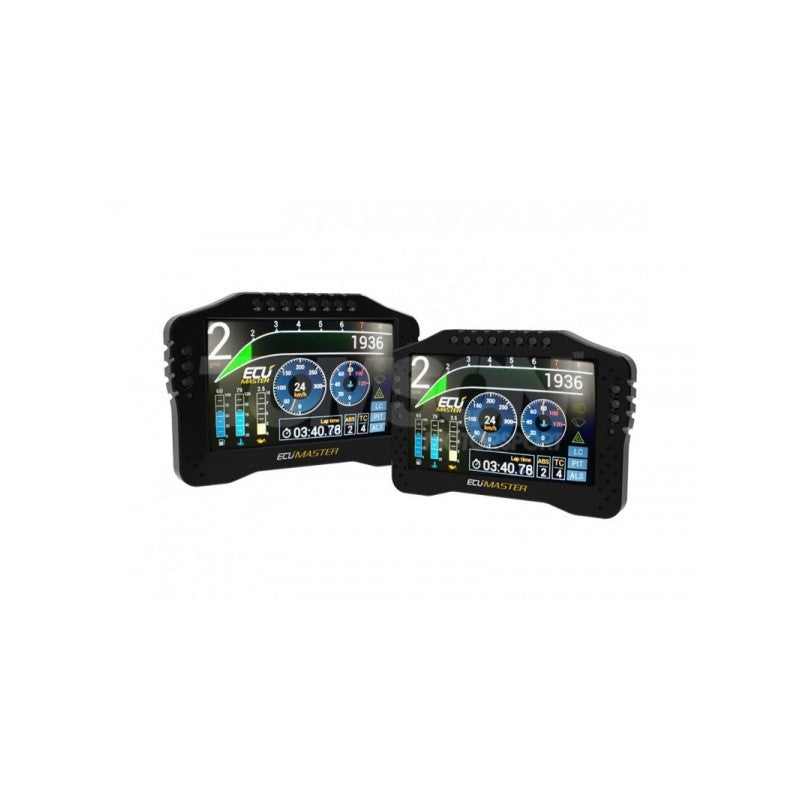

ECUMASTER Display ADU 5"

Our Advanced Display Units are available in 5” and 7” versions. Both versions feature high resolution, high visibility anti-glare screens, guaranteeing perfect visibility in any lighting conditions. The ADU comes with multiple pre-configured pages, which can be customized by the end user to display data required at every race stage (e.g. practice, qualification, race, troubleshooting, etc.). Pages may be changed manually or automatically (based on defined conditions). Each channel displayed on a page (gauges, icons, texts, etc.) can be easily modified in real time using user-friendly Windows based software. Our comprehensive overlay system facilitates a multiple page display for important data (e.g. low oil pressure, best lap, etc.) independent of the actual page displayed.

GENERAL:
Temperature range    AECQ100 GRADE1 (-40 to +85˚C)
Reverse battery protection    Yes, internal
Operating voltage    6-22V, immunity to transients according to ISO 7637
Enclosure    IP 60, custom CNC machined aluminum
Connectors    1 x 35 positions, AMP Automotive connector
PC communication    CAN BUS – Ecumaster interface, Peak or Kvaser
Display Type    TFT 800×480
Brightness of display    5″ – 600 cd/m2, 7″ – 1000 cd/m2
