Brake Pipe Repair Kit 10m Copper Brake Line + 10x M10x1 Fittings + Brass Connector

10m Copper Brake Pipe Repair Kit – Complete Brake Line Fabrication Set

Build, repair, or replace brake lines with confidence using this complete copper brake pipe repair kit. Designed for automotive, commercial vehicle, and workshop use, the kit includes a 10-metre high-quality copper brake line, 10 steel brake pipe fittings, and a brass brake line connector.

Manufactured from premium Cu-DHP copper and produced to EN 12449 standards, the brake pipe offers excellent flexibility, corrosion resistance, and long-term durability. The material can be bent and formed easily without specialised tools, making installation quick and straightforward.

Ideal for replacing corroded brake lines, fabricating custom brake systems, or carrying out professional vehicle repairs.

Key Features

• Complete brake pipe fabrication kit

• 10 metres of high-quality copper brake line

• Includes 10 steel brake pipe fittings

• Includes brass brake pipe connector

• Manufactured to EN 12449 standards

• Made from 99.9% Cu-DHP copper

• Excellent corrosion resistance

• Easy to bend and shape without cracking

• Suitable for automotive and commercial vehicle applications

• Pressure tested and certified

• Long service life in harsh environments

Why Choose Copper Brake Lines?

Copper brake lines are widely used due to their excellent durability and ease of installation. Unlike steel pipes, copper resists corrosion and can be formed accurately without specialist equipment.

Benefits include:

• Easier installation and routing

• Superior resistance to rust and moisture

• Long service life

• Reduced risk of pipe corrosion failure

• Ideal for restoration and custom builds

• Professional repair solution

Technical Specifications

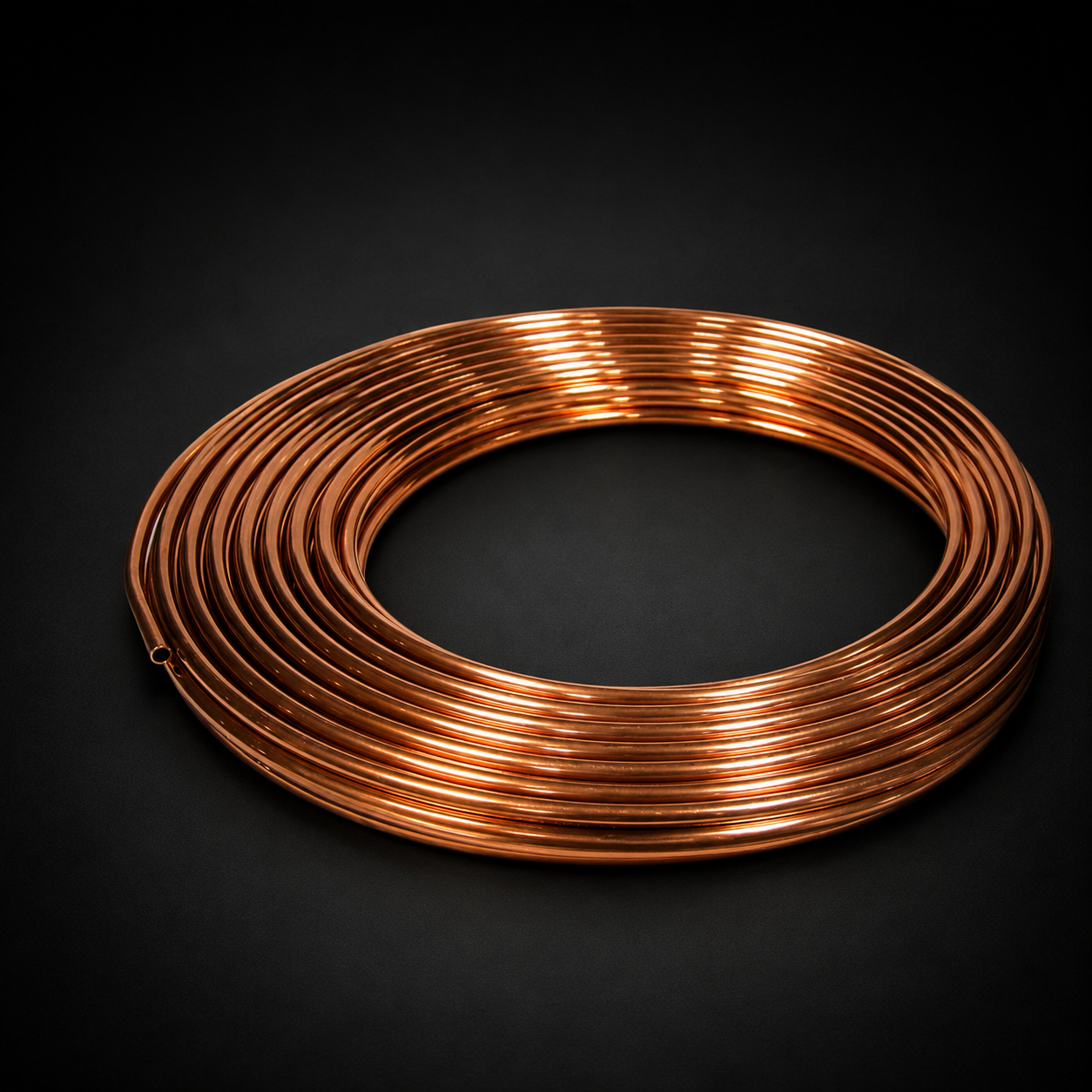

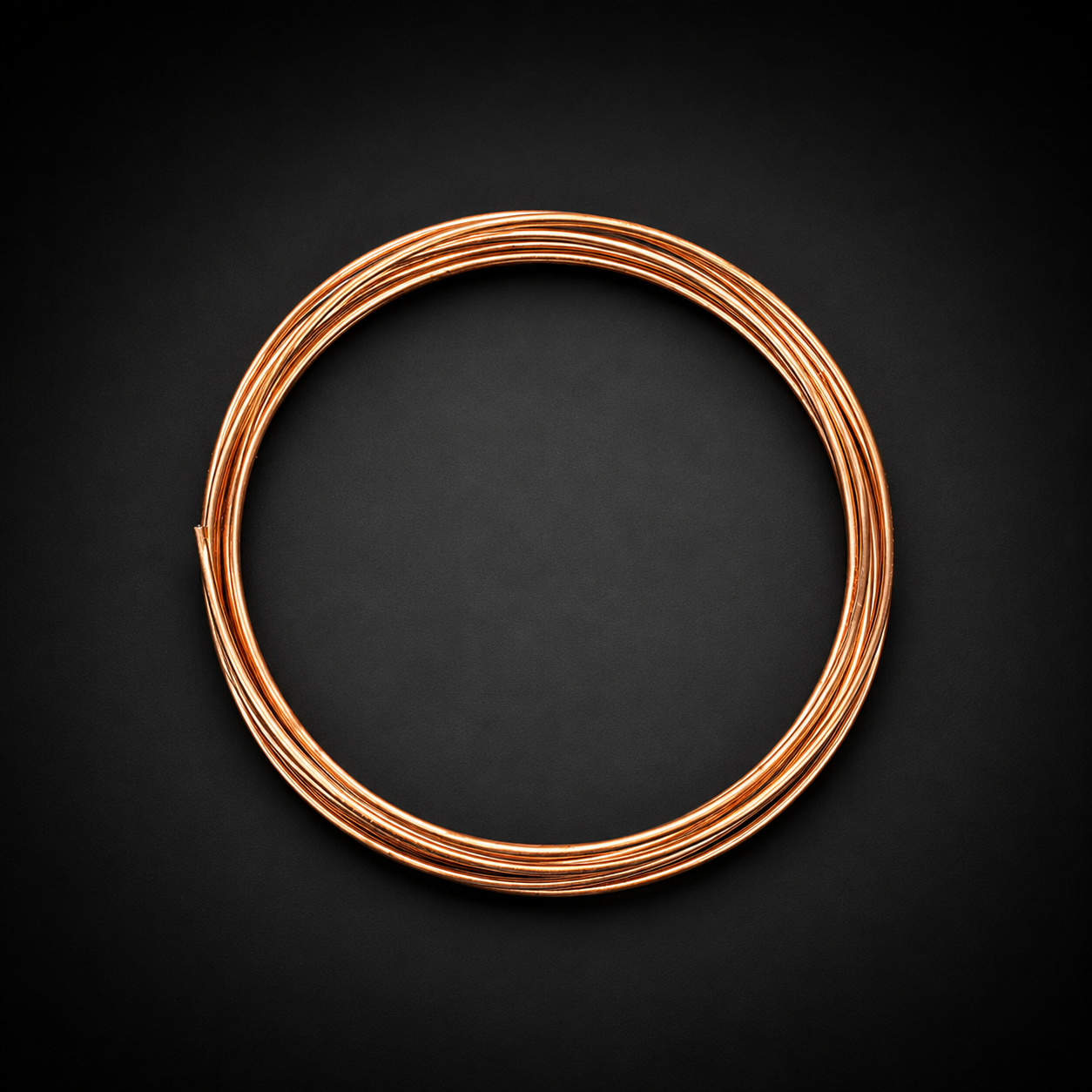

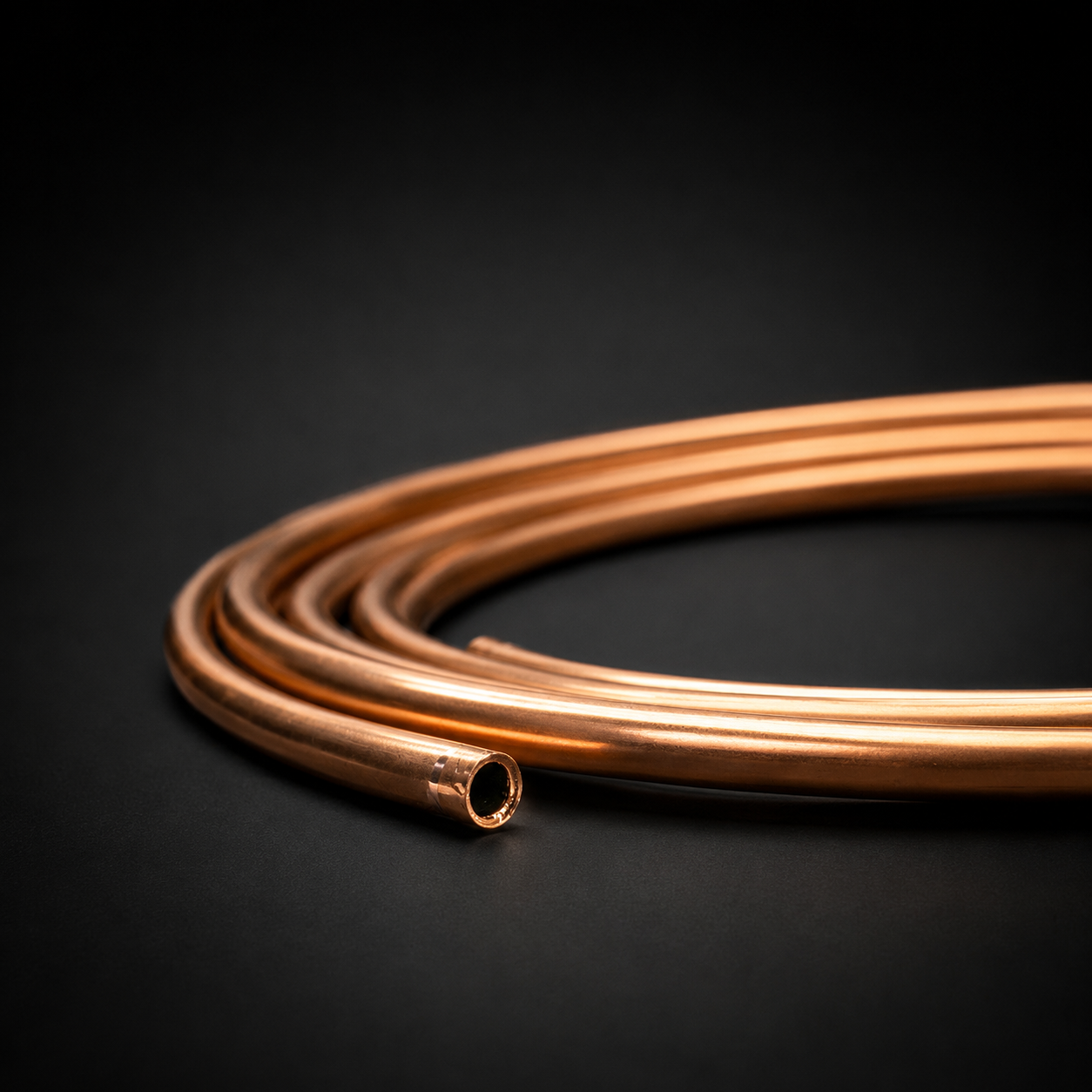

Copper Brake Pipe

Material: Cu-DHP Copper (99.9%)

Production Standard: EN 12449

Outer Diameter: 4.76 mm

Inner Diameter: 2.96 mm

Wall Thickness: 0.9 mm

Length: 10 metres

Hardness Rating: R200 / R220

Pressure Tested: Up to 550 atm (55.7 MPa)

Certification: Yes

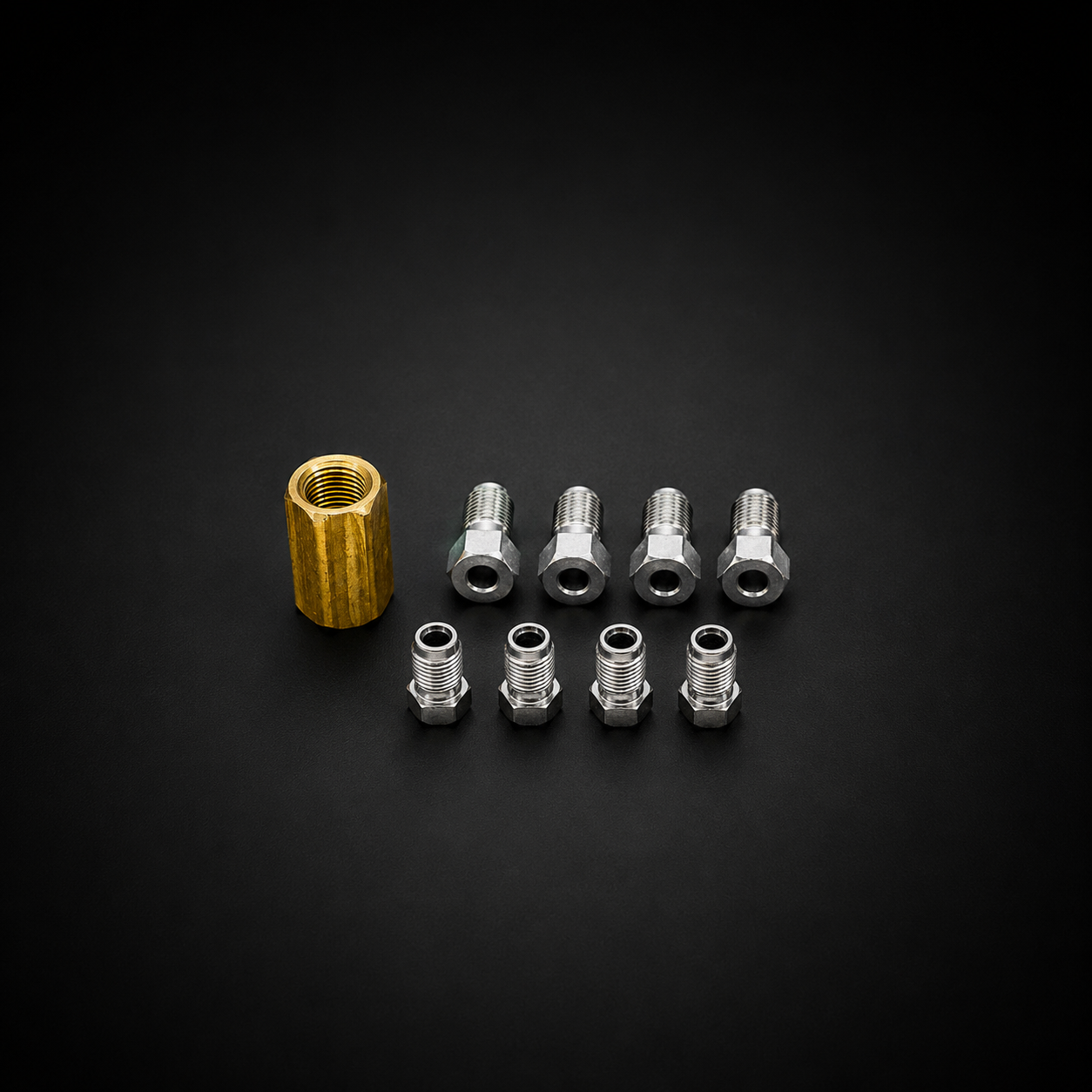

Brake Pipe Fittings

Quantity: 10 pcs

Thread Size: M10x1

Material: Zinc-Coated High-Grade Steel

Overall Length: 17.5 mm

Internal Diameter: 5 mm

Flare Type: Mushroom

Brass Brake Pipe Connector

Quantity: 1 pc

Thread Size: M10x1

Material: Brass

Overall Length: 23 mm

Vehicle Compatibility

Universal application for vehicles using 4.75mm / 4.76mm brake pipe systems and M10x1 brake line fittings.

Commonly suitable for many models from:

• BMW, Audi, Volkswagen, Mercedes-Benz, Opel and etc.

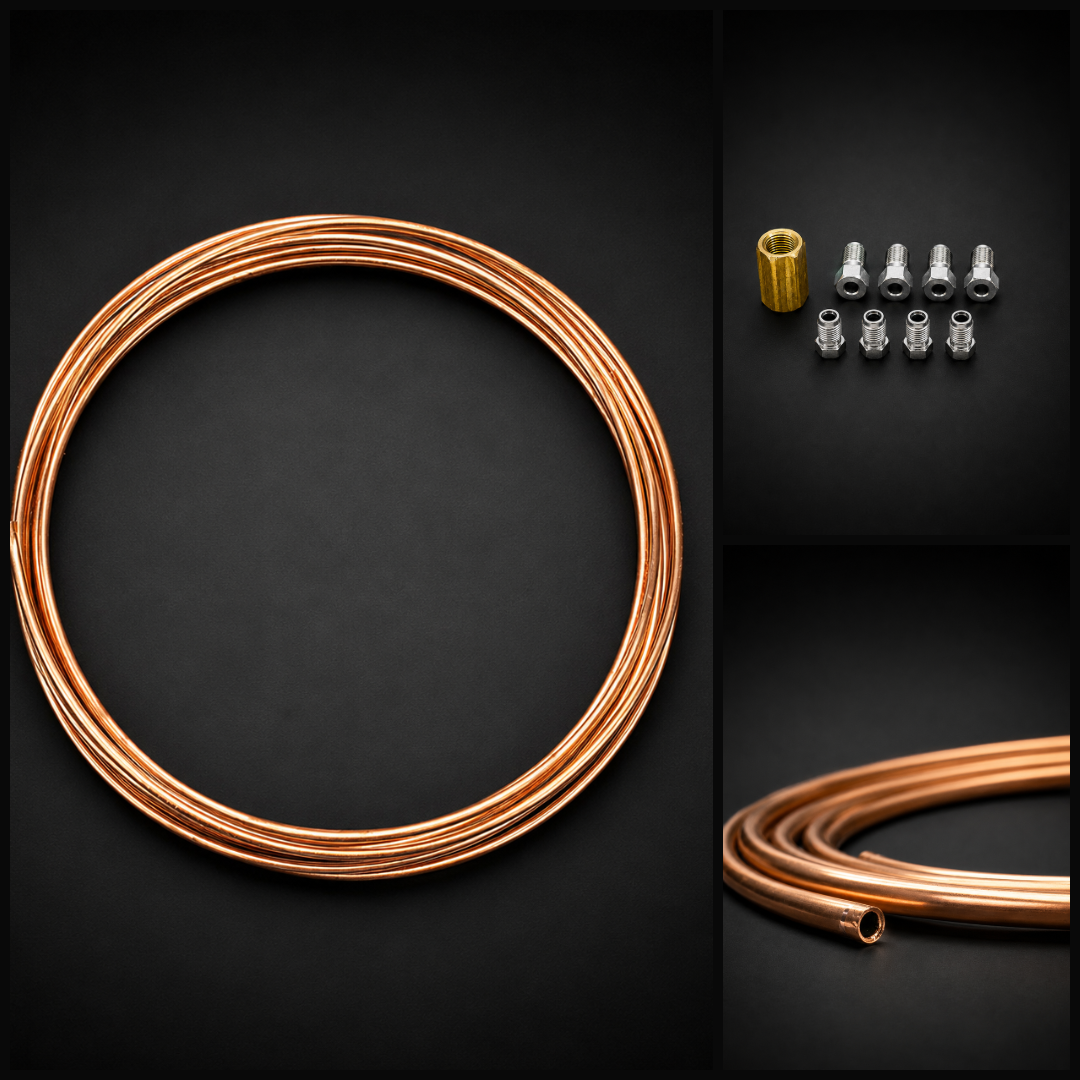

What's Included

• 10m Copper Brake Pipe (4.76mm)

• 10x M10x1 Brake Pipe Fittings

• 1x Brass Brake Pipe Connector

• Ready-to-use Brake Line Repair Kit

Product Specifications

Product Type: Brake Pipe Repair Kit

Pipe Material: Cu-DHP Copper

Pipe Length: 10m

Pipe Diameter: 4.76mm

Fittings: M10x1

Connector Material: Brass

Condition: New

Application: Brake Line Repair & Fabrication

Country of Manufacture: EU
