BMW E8X / E9X PRO Drift Angle Kit

E8X / E9X PRO Drift Angle Kit

We have tried every single setting to guarantee the best possible steering control and feedback for E8X/E9X chassis. Years of experience racing these chassis.

Buttery smooth & easy control. No steering wobbles, binds or shakes - all combined with huge steering angle.

With this kit, you no longer need to use or modify your original knuckle - assembly is much easier.

Fits all E81/E82/E87/E88 1 series, E90/E91/E92/E93 3 series BMW's - NON M BRAKES

Some of Suboske Racing E8X/E9X Drift angle kit features :

Up to 72 degrees of steering angle
High strength steel control arms, knuckles and tie rod ends
Wider stance to achieve necessary clearance
Roll center correction
Bump steer correction
Optimal Ackermann for drifting (4 settings)
Adjustable steering stoppers
Excellent steering control/feedback
Quality bearings are used to ensure long lifetime
Easily adjustable caster

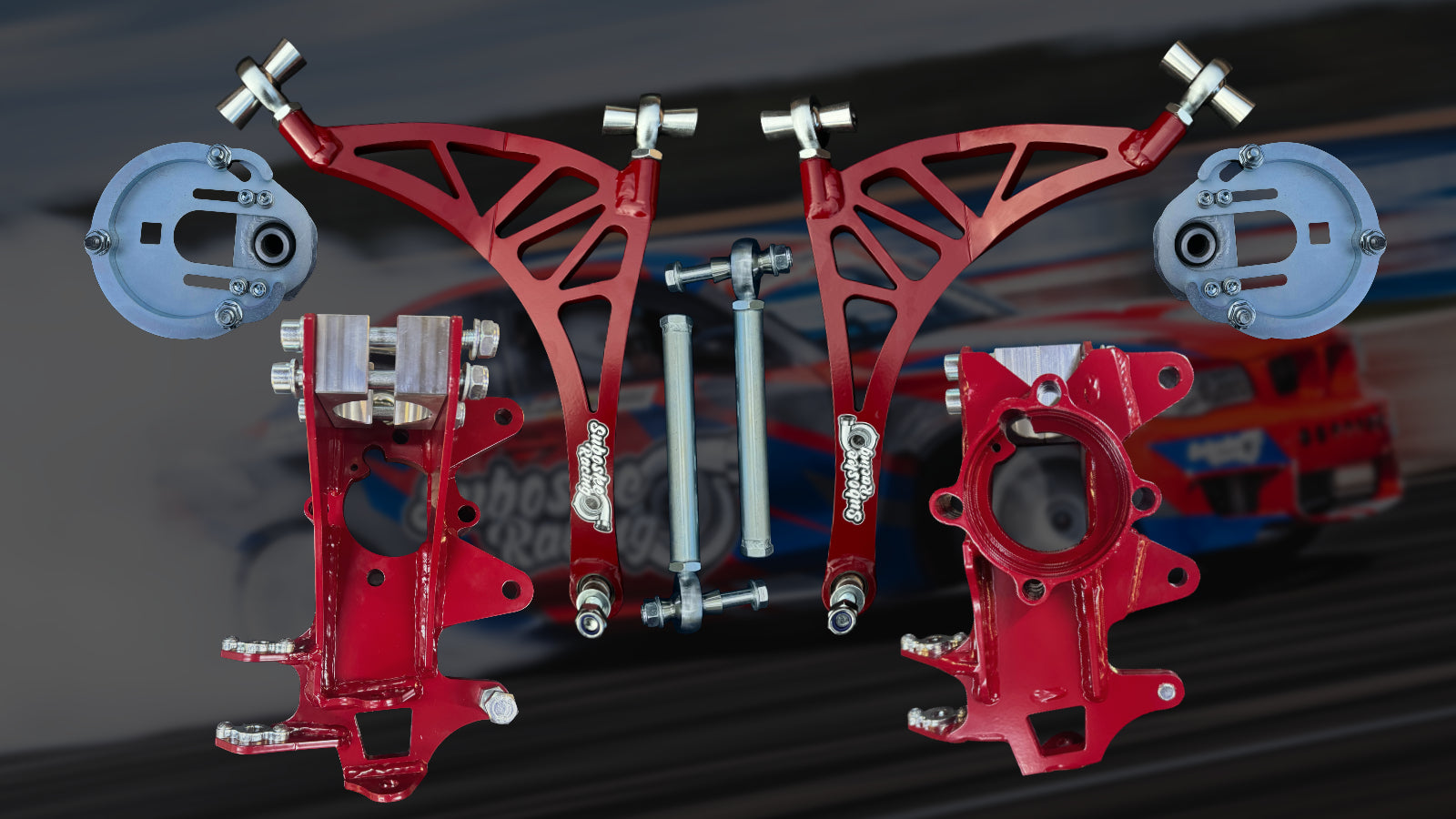

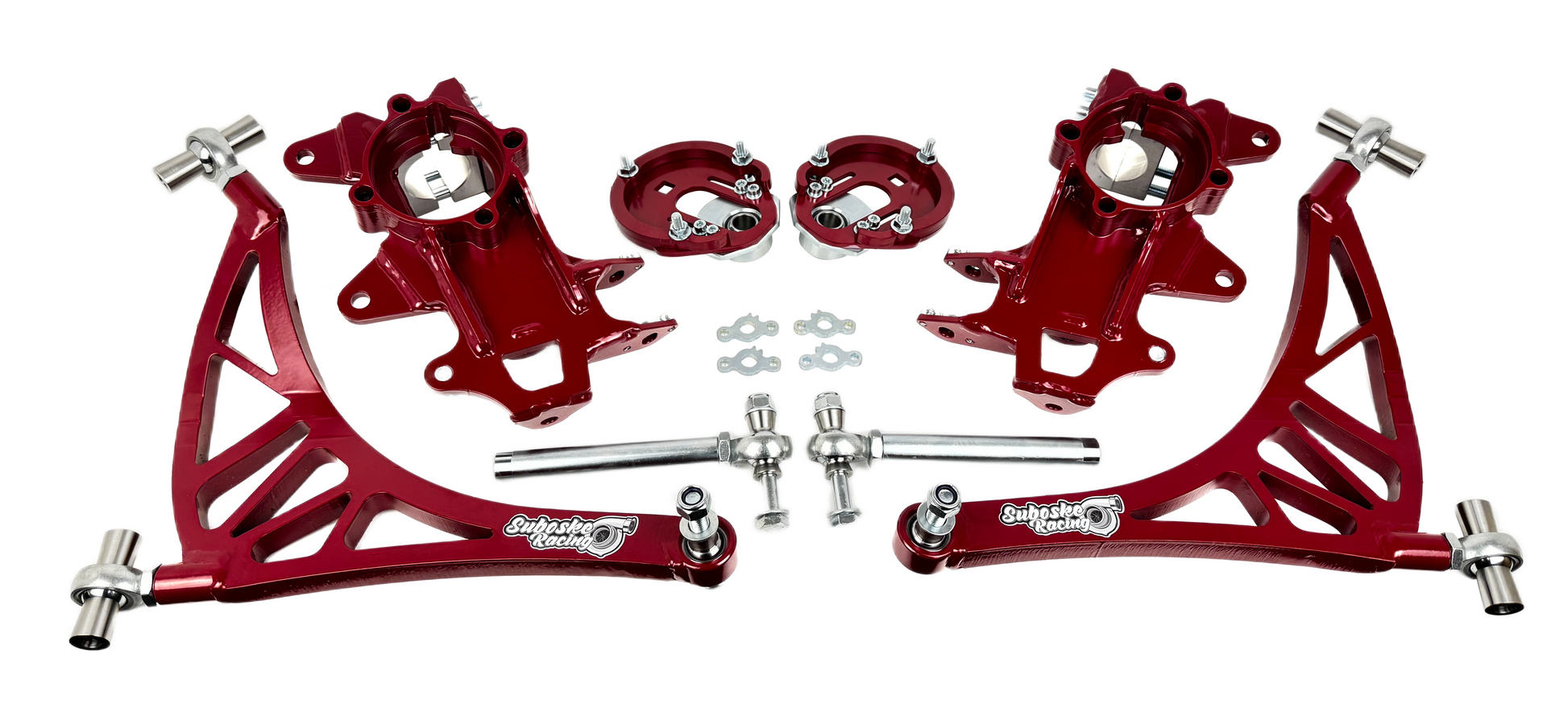

This kit has everything you need to install :

2x Lower control arms
2x Knuckles
2x Outer tie rods
2x Top mounts
4x Ackermann shims

All bearings and hardware necessary for installation
Installation/setup instruction

Coilovers are suggested to run with this kit. Please let us know what coilover brand you plan to use - we can help you to spec out appropriate top mounts!

To install this kit you will need :

Stock inner tie rods
Stock brakes (non-M)
Stock wheel bearings
Stock front sway bar will have to be removed
Minimum wheel size R17
Chassis seam behind the wheel (inner wheel well) is suggested to be flattened for clearance (no cutting required)
Wider front fenders or overfenders. +65mm for E8X, +50mm for E9X (these values are for 235/40R18 ET20, please use fitment calculator for different wheel/tire combos)
Coilovers *suggested
Qualified mechanic
All individual pieces are available as a spare part.

Racing use only
