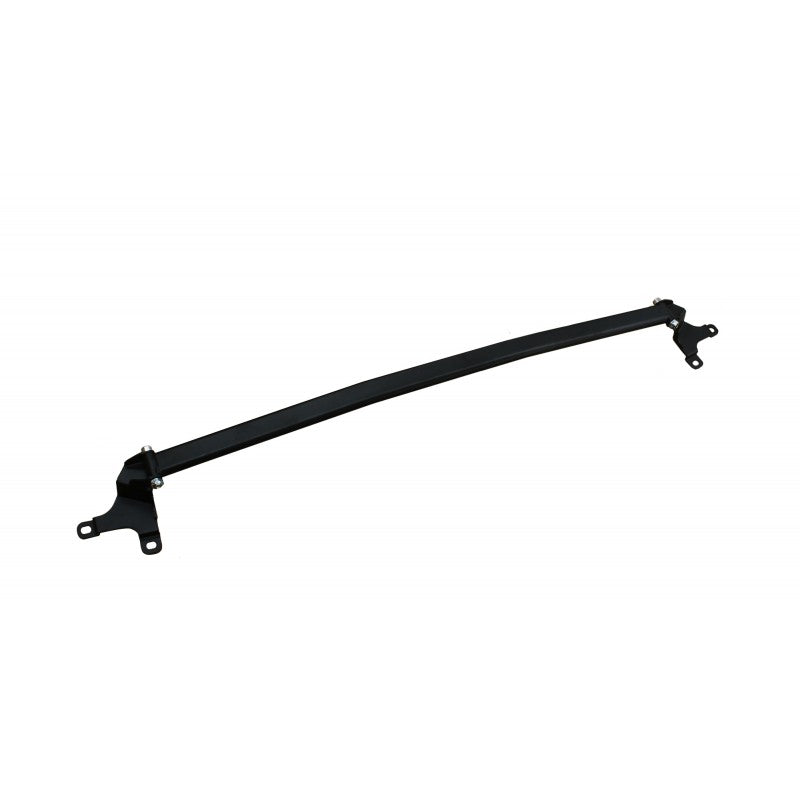

BMW E60 E61 Front Strut Brace

The BMW E60 E61 Front Strut Brace is a steel chassis reinforcement bar designed to improve front-end rigidity and reduce strut tower flex during cornering and demanding driving conditions.

By connecting the two front suspension strut towers, this reinforcement bar helps distribute suspension loads across the front chassis, reducing unwanted movement and supporting more consistent handling, steering response and stability.

Designed for BMW E60 and E61 performance builds, drifting, track days and motorsport applications, the brace combines durable steel construction with precision manufacturing.

The strut bar is MIG/MAG welded, while the mounting brackets are laser-cut and CNC-pressed. A black powder-coated finish provides additional surface protection and a clean appearance.

The brace can be installed alongside the original factory strut brace, allowing additional reinforcement without removing the existing component.

Key Features:

- Front Chassis Reinforcement – Connects both front strut towers to help reduce chassis flex.

- Improved Handling Stability – Supports more consistent steering response and front-end stability during cornering.

- Compatible with Factory Strut Brace – Designed to be installed alongside the original reinforcement bar.

- Steel Construction – Manufactured for strength and durability.

- MIG/MAG Welded – Strong welded construction for performance applications.

- Precision-Manufactured Brackets – Laser-cut and CNC-pressed mounting components.

- Black Powder-Coated Finish – Protective coating for durability and appearance.

- Flat Oval Steel Profile – 40 × 20 mm tubing with 3 mm wall thickness.

Vehicle Compatibility:

- BMW E60

- BMW E61

Compatible Models: 520, 525, 530, 545, 550 and M5.

Technical Specifications:

- Product Type: Front upper strut brace / strut tower bar

- Material: Steel

- Colour: Black

- Finish: Powder coating

- Tube Profile: Flat oval

- Tube Dimensions: 40 × 20 mm

- Wall Thickness: 3 mm

- Welding Method: MIG/MAG

- Mounting Brackets: Laser-cut and CNC-pressed

- Installation Position: Front strut towers

- Factory Strut Brace: Compatible with original brace

Installation Information:

Designed to connect the front strut towers and provide additional chassis reinforcement.

The strut brace can be installed together with the original factory brace.

Important: Check compatibility and clearance around engine components and any aftermarket modifications before installation.

TIP: To make fitting easy and simple please lift your car off the ground.
