BMW E46 Z4 E85 Front Control Arm Adjusters

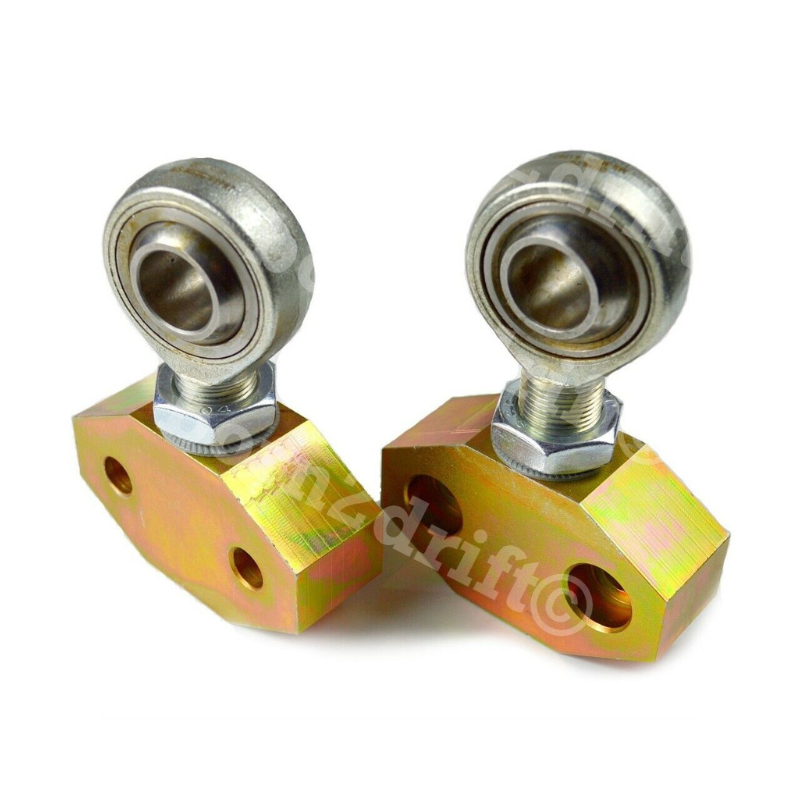

The BMW E46 / Z4 E85 Adjustable Front Control Arm Bushings (Lollipop Kit) are designed to provide adjustable front suspension geometry for BMW drift, track and motorsport builds.

Manufactured from steel and equipped with high-quality bearings, these adjustable control arm mounts provide a more rigid alternative to conventional rubber front control arm bushings.

The adjustable design allows changes to the front control arm position, enabling fine-tuning of caster and front wheel positioning to suit different suspension setups and driving requirements.

Unlike fixed-position control arm bushings, these adjustable lollipop mounts allow suspension geometry adjustments without removing the mounting assemblies from the vehicle.

Their rigid, bearing-supported construction helps reduce unwanted movement at the front control arm mounting points, providing more direct steering feedback and consistent suspension response.

Supplied as a set of two adjustable mounts, suitable for compatible BMW E46 and BMW Z4 E85 front suspension configurations.

Key Features:

- Adjustable Front Suspension Geometry – Allows changes to front control arm positioning.

- Caster Adjustment – Helps fine-tune front suspension caster settings.

- Front Wheel Position Adjustment – Allows changes to wheel positioning within the available adjustment range.

- Adjustable Without Removal – Designed to allow adjustments while the mounts remain installed.

- Rigid Control Arm Connection – Reduces unwanted movement compared with conventional rubber bushings.

- More Direct Steering Response – Reduced mounting compliance can improve steering feedback.

- High-Quality Bearings – Bearing-supported construction for controlled suspension movement.

- Steel Construction – Manufactured from steel for demanding suspension applications.

- Motorsport Applications – Suitable for drifting, track driving and performance builds.

- Pair Included – Supplied as two adjustable front control arm mounts.

Vehicle Compatibility:

- BMW E46 – 3 Series

- BMW Z4 E85 – Roadster

Designed for compatible BMW E46 and Z4 E85 front control arm mounting arrangements.

Fitment Note: Compatibility with BMW E46 M3, Z4 M and Z4 E86 Coupe configurations should be confirmed before ordering. Verify the control arm and mounting arrangement on modified vehicles.

Technical Specifications:

- Product Type: Adjustable front control arm bushings / lollipop mounts

- Material: Steel

- Bearing Type: Bearing-supported

- Adjustment: Front control arm position / caster geometry

- Installation Position: Front control arm rear mounting points

- Quantity: 2 pieces

- Vehicle Compatibility: BMW E46 / BMW Z4 E85

- Application: Front suspension geometry adjustment / drifting / motorsport

Installation Information:

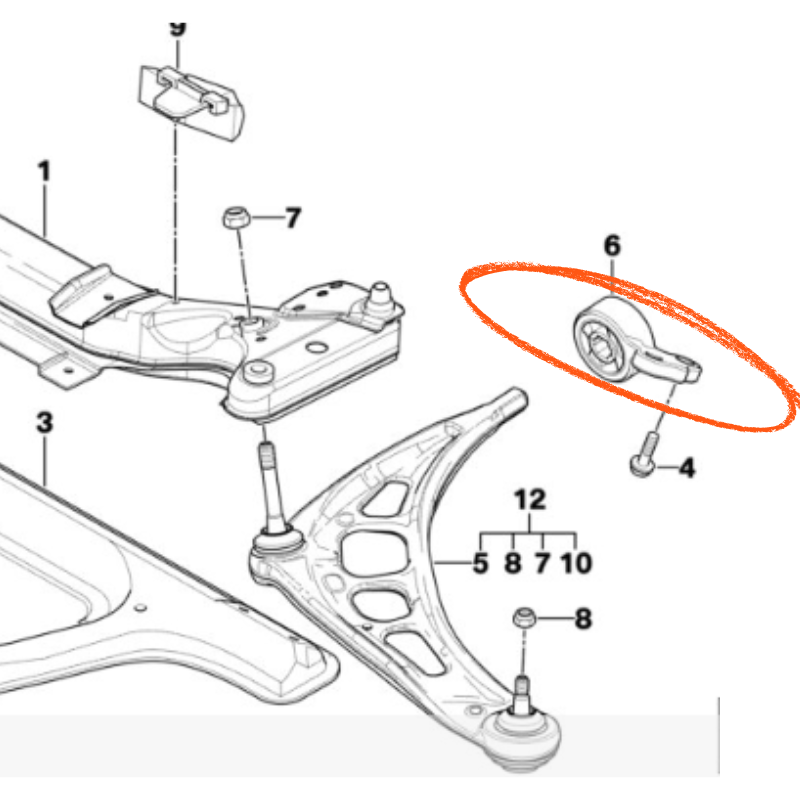

These adjustable lollipop mounts are designed to replace the original front control arm rear mounting assemblies on compatible BMW E46 and Z4 E85 vehicles.

After installation, the adjustable mechanism allows front suspension geometry to be fine-tuned without removing the complete mounting assembly.

Both sides should be adjusted carefully to achieve the intended suspension setup.

A professional wheel alignment is required after installation and following any geometry adjustments.

Check tyre clearance, steering operation, suspension travel and component interference throughout the available adjustment range.

Important: Rigid bearing-supported mounts may transmit more road noise, vibration and harshness (NVH) than standard rubber bushings. Professional installation and suspension setup are recommended.
