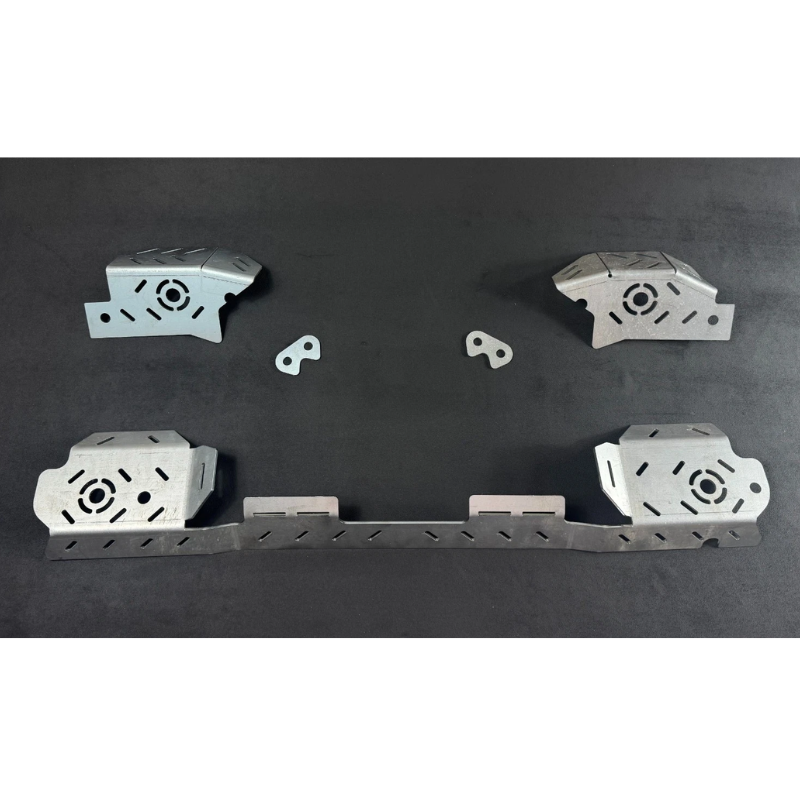

BMW E46 / M3 / CSL Rear Subframe Reinforcement Kit

The BMW E46 Rear Subframe Reinforcement Kit is a weld-in steel chassis reinforcement set designed for BMW E46, E46 M3 and M3 CSL models.

The BMW E46 is known for developing fatigue and cracking around the rear axle carrier mounting points, particularly on vehicles exposed to high suspension loads, aggressive driving, drifting and motorsport use.

This reinforcement kit is designed to strengthen the vulnerable rear floor and subframe mounting areas, helping distribute loads across the surrounding chassis structure and reduce the risk of further damage.

The steel reinforcement plates can be used for preventative chassis strengthening or as part of a professional repair of existing cracks and weakened mounting areas.

Designed for BMW E46 restoration, performance builds and motorsport preparation, the kit provides additional structural reinforcement to the rear axle carrier mounting points.

All reinforcement plates must be welded to the underside of the vehicle.

Key Features:

- Rear Subframe Mount Reinforcement – Strengthens high-stress rear axle carrier mounting areas.

- Helps Reduce Chassis Cracking – Reinforces areas vulnerable to fatigue and structural damage.

- Suitable for Chassis Repairs – Can be incorporated into professional repairs of cracked rear floor mounting points.

- BMW E46 M3 and CSL Compatibility – Designed for standard E46 models, E46 M3 and M3 CSL.

- Steel Construction – Manufactured from steel for structural reinforcement.

- Weld-In Installation – Reinforcement plates are welded to the underside of the chassis.

- Motorsport Applications – Suitable for drifting, track use and performance builds.

- Restoration and Preventative Maintenance – Suitable for strengthening ageing BMW E46 chassis.

Vehicle Compatibility:

- BMW E46 – 3 Series

- BMW E46 M3

- BMW E46 M3 CSL

Fitment Note: Confirm compatibility with your vehicle's rear axle carrier mounting arrangement before ordering, particularly on vehicles with previous chassis repairs or modifications.

Technical Specifications:

- Product Type: Rear subframe reinforcement kit / rear axle carrier mounting reinforcement plates

- Material: Steel

- Installation Position: Rear floor / rear axle carrier mounting points

- Installation Method: Weld-in

- Application: Chassis reinforcement / structural repair / motorsport preparation

- Vehicle Compatibility: BMW E46 / E46 M3 / M3 CSL

Installation Information:

Professional welding is required. This is not a bolt-on kit.

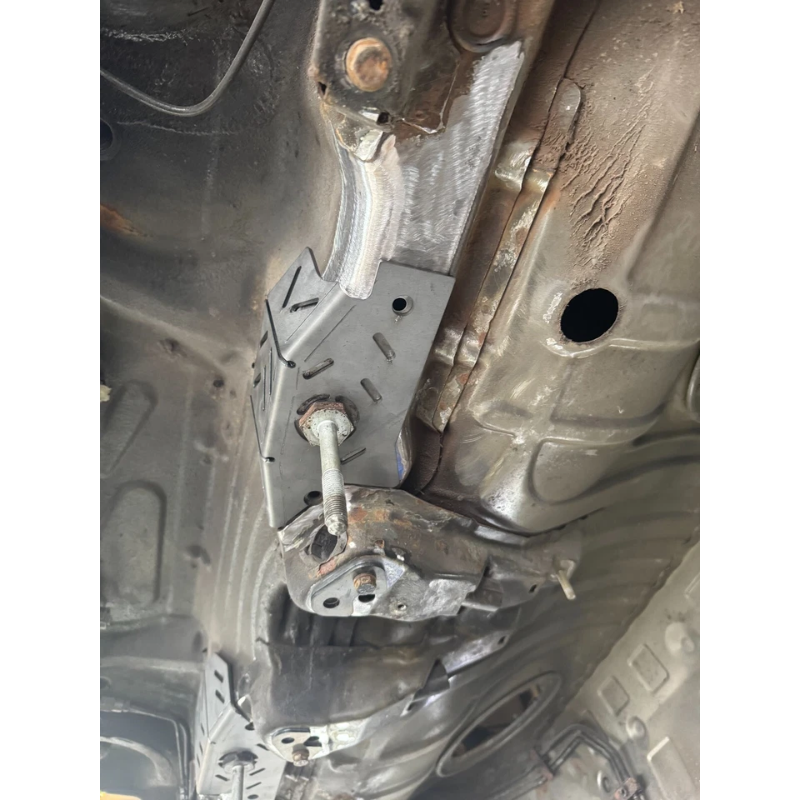

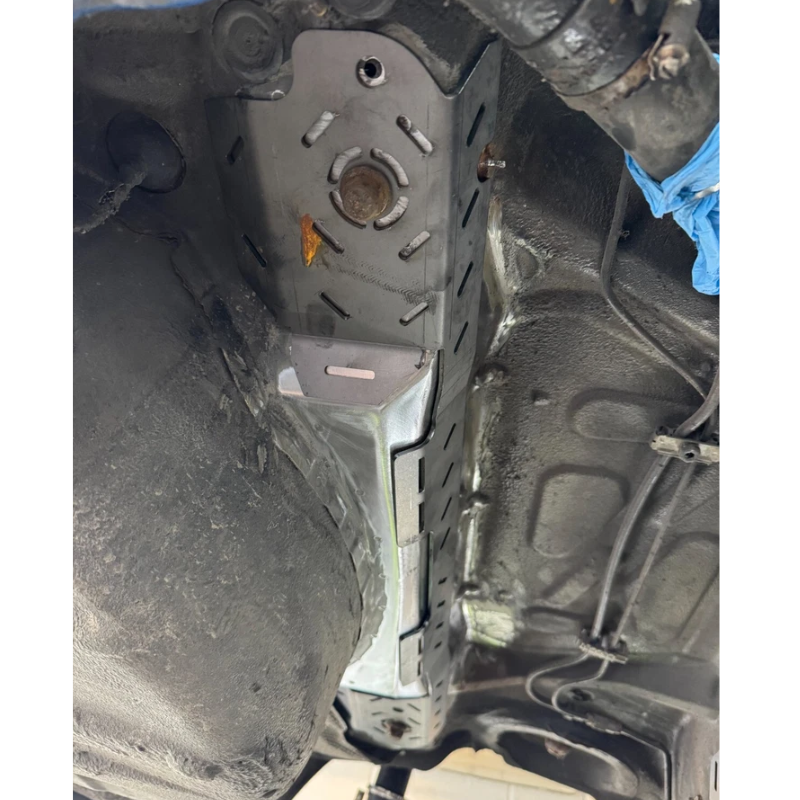

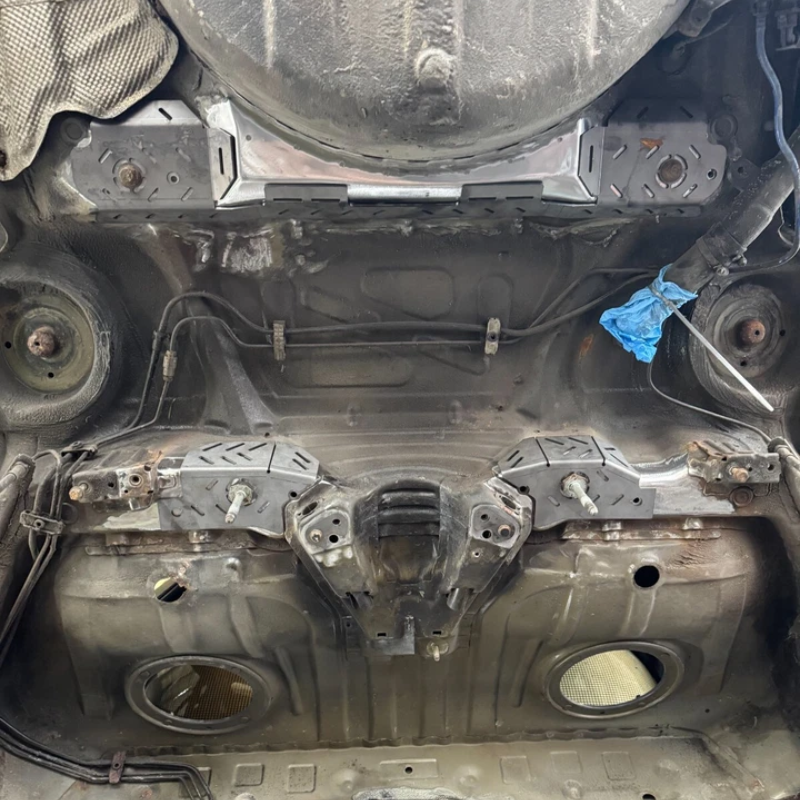

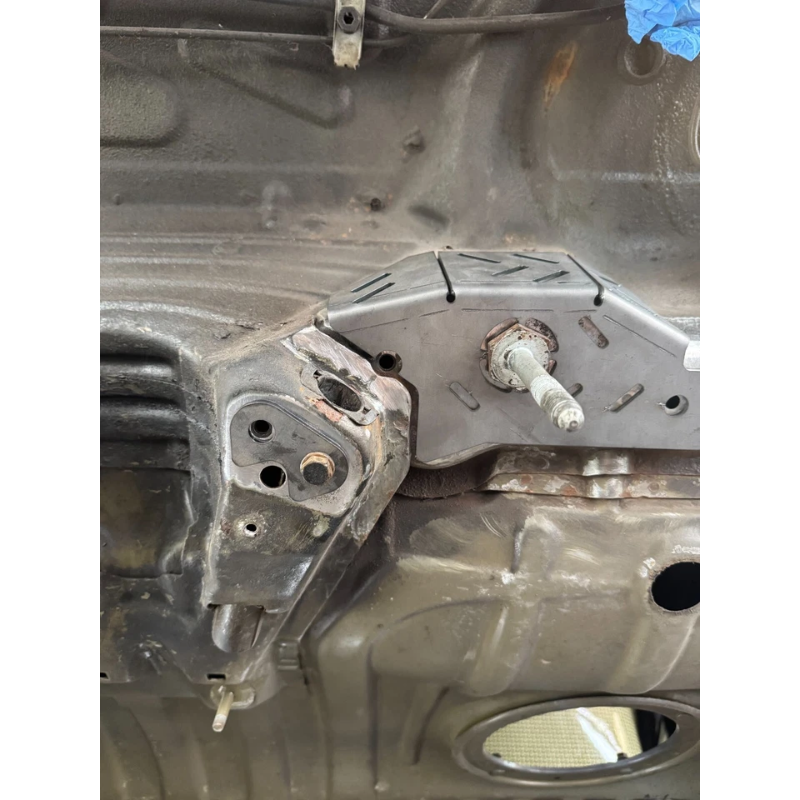

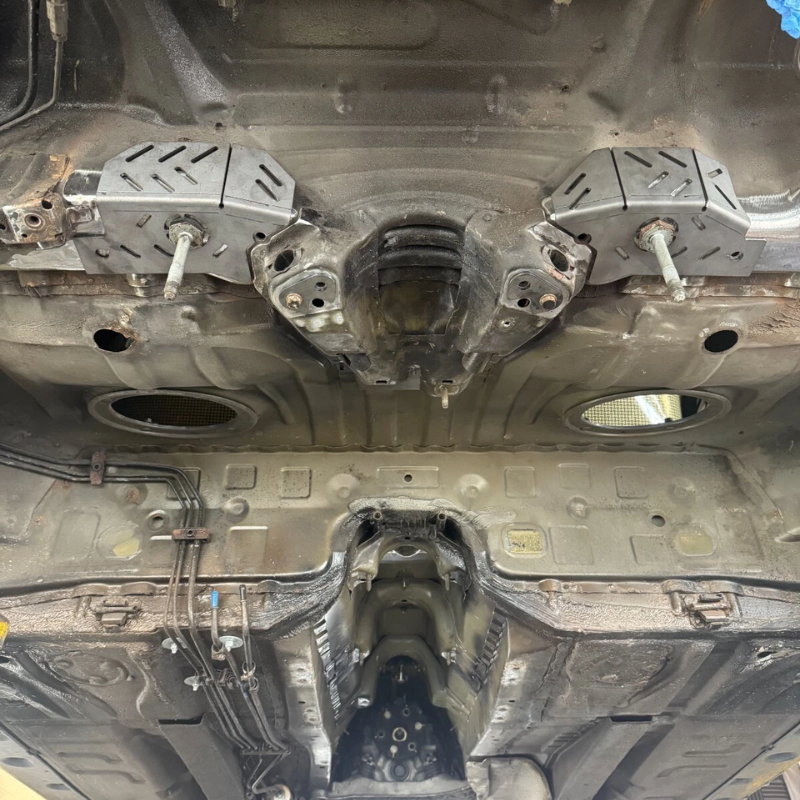

The reinforcement plates must be welded to the underside of the vehicle around the relevant rear axle carrier mounting areas.

Before installation, inspect the rear floor and surrounding chassis structure for cracks, corrosion, deformation and previous repairs.

Any existing cracks or structural damage must be properly repaired before the reinforcement plates are welded into position. Welding reinforcement plates over unrepaired damage is not a substitute for a correct structural repair.

Professional installation by an experienced automotive fabricator or qualified welder is strongly recommended.
