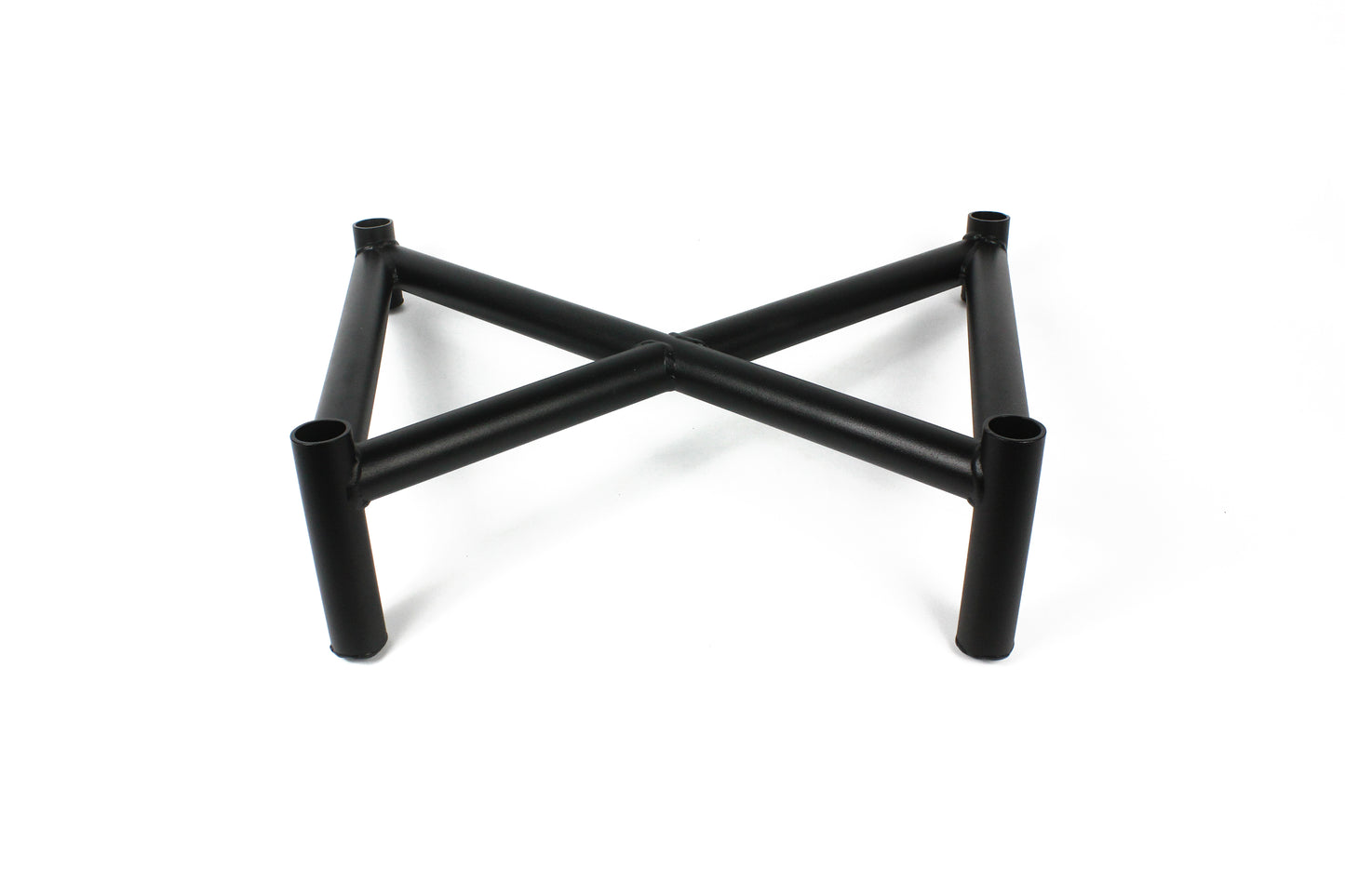

BMW E36 Rear 4 - Point RACP X-Brace - Rear Axle Reinforcement

BMW E36 Rear 4-Point X-Brace – RACP Rear Axle Carrier Panel Reinforcement

Strengthen one of the BMW E36’s most well-known weak points with this professional Rear Axle Carrier Panel (RACP) reinforcement brace. Designed as a 4-point lower X-brace, it significantly increases chassis rigidity, stabilizes the rear axle and protects the RACP from cracks and structural fatigue.

Perfect for drift, track and high-performance street builds where the rear suspension area must handle high loads.

Key Benefits

Increases torsional rigidity of the body

Reinforces the RACP – protects against cracks and failures

Improves rear-axle control and driving precision

Enhances overall chassis durability

Highly recommended for tuned, swapped or motorsport E36 builds

This brace stabilizes the subframe mounting points and reduces unwanted flex, especially under hard acceleration, aggressive cornering or drifting.

Important Note :

A strut brace does not replace thin factory sheet metal with thick steel.

For cars with existing damage, it is advisable to repair or weld-reinforce the RACP before installing this brace. (These reinforcement plates are available in our store.)

Construction & Quality:

Made from structural steel tubing – this brace is built to withstand extreme load.

MIG/MAG welding by certified welders

Laser-cut mounting plates

CNC-bent brackets for perfect fit

Mounting holes are pressed for extra strength

Finished with a durable black powder-coat

Weight: approx. 5.15 kg

The result is a highly durable reinforcement with a clean, professional motorsport look.

Installation:

Requires cutting mounting holes in the luggage area

Requires drilling the carrier mounting points

Includes high-strength bolts (replaces OEM subframe bolts)

Bolt-on installation – no welding required

Since this brace is bolted and not welded:

No ABE required

No TÜV or registration needed

Compatibility:

BMW E36 Coupé, BMW E36 Sedan, BMW E36 Touring

(Not for E36 Compact.)

What’s Included:

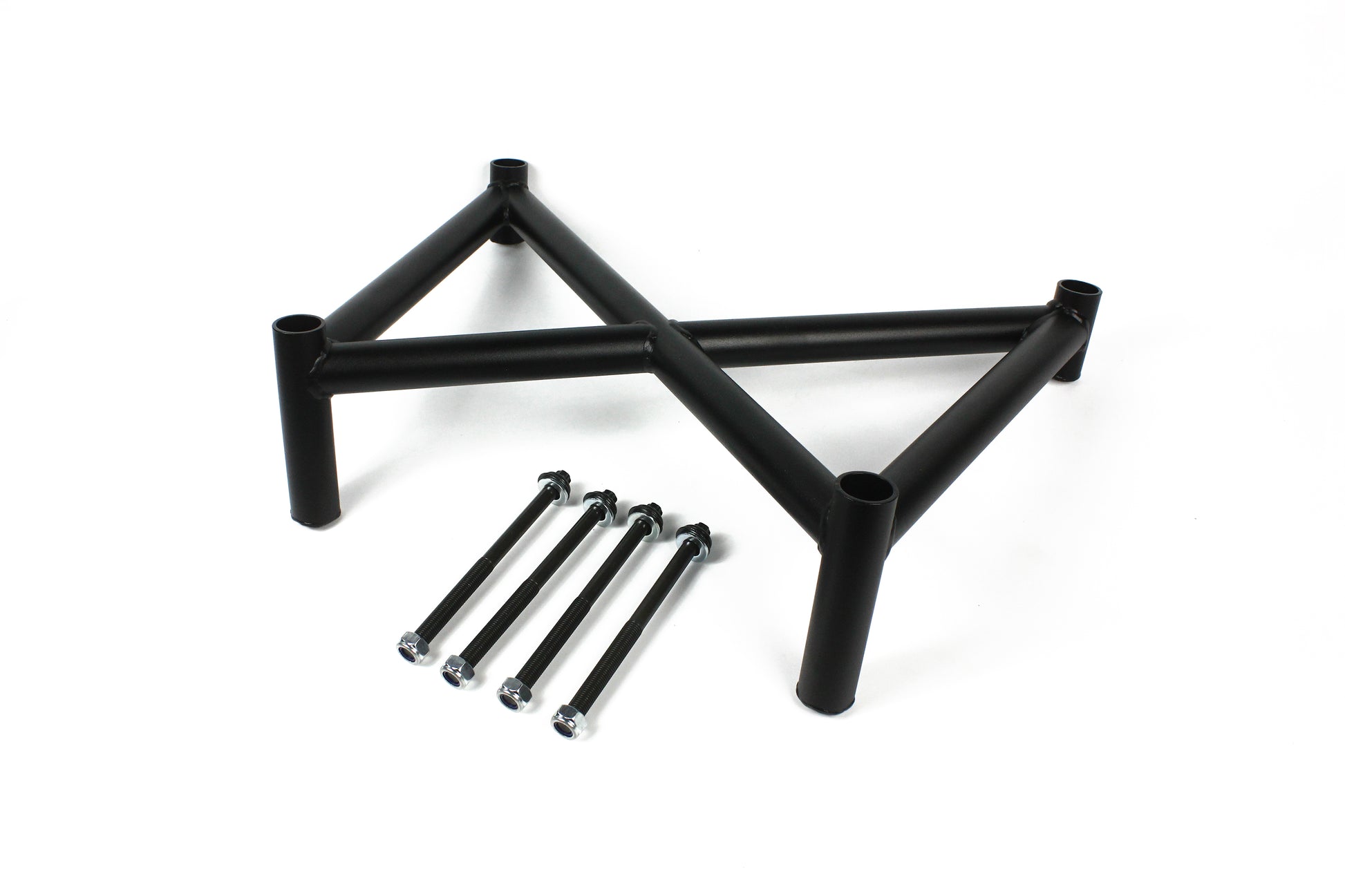

1x Rear 4-Point RACP X-Brace

1x Set of high-strength mounting screws
