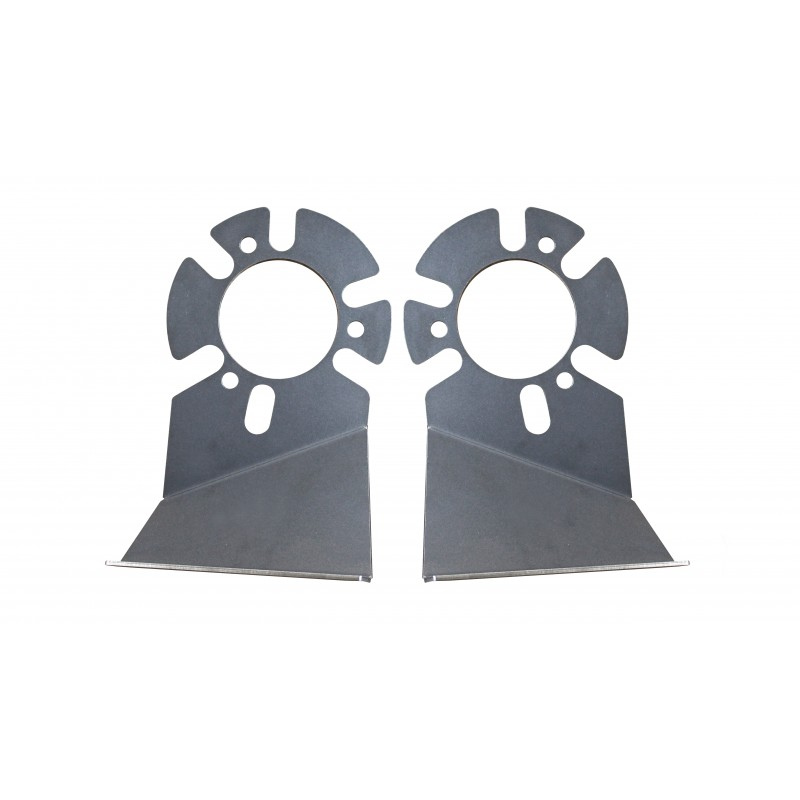

BMW E36 Front Strut Tower Side Reinforcement Plates

The BMW E36 Front Strut Tower Reinforcement Kit is designed to strengthen the front suspension mounting areas and help prevent structural damage caused by high suspension loads during drifting, racing and motorsport use.

Manufactured from 3 mm steel, these weld-in reinforcement plates connect the front strut tower areas to the adjacent inner wing (fender rail) structure, providing additional support to the front chassis.

By reinforcing these critical suspension mounting areas, the kit helps reduce localised chassis flex and distributes suspension forces across the reinforced structure.

Each component is precision laser-cut and CNC-bent for consistent dimensions and accurate manufacturing.

Designed for BMW E36 performance and motorsport builds where additional front chassis reinforcement is required.

Key Features:

- Front Strut Tower Reinforcement – Strengthens the front suspension mounting areas.

- Strut Tower-to-Fender Rail Support – Reinforces the connection between the shock towers and adjacent body structure.

- 3 mm Steel Construction – Manufactured from steel for structural reinforcement.

- Weld-In Installation – Designed to be permanently welded to the chassis.

- Reduced Localised Flex – Helps improve rigidity around the reinforced front suspension mounting areas.

- Suspension Load Distribution – Helps distribute high suspension forces across the reinforced structure.

- Precision Laser-Cut – Manufactured for consistent dimensions.

- CNC-Bent Components – Formed to suit the intended reinforcement areas.

- Motorsport Applications – Suitable for drifting, track driving, racing and performance chassis builds.

Vehicle Compatibility:

- BMW E36 – 3 Series

Designed for compatible BMW E36 front strut tower and inner wing configurations.

Technical Specifications:

- Product Type: Front strut tower / inner wing reinforcement kit

- Vehicle Application: BMW E36

- Installation Position: Front strut tower and adjacent inner wing / fender rail areas

- Material: Steel

- Steel Thickness: 3 mm

- Manufacturing Method: Laser-cut and CNC-bent

- Installation Method: Weld-in

- Welding Required: Yes

- Application: Front chassis and suspension mounting reinforcement

- Intended Use: Drift / racing / track / motorsport

Installation Information:

Professional welding is required.

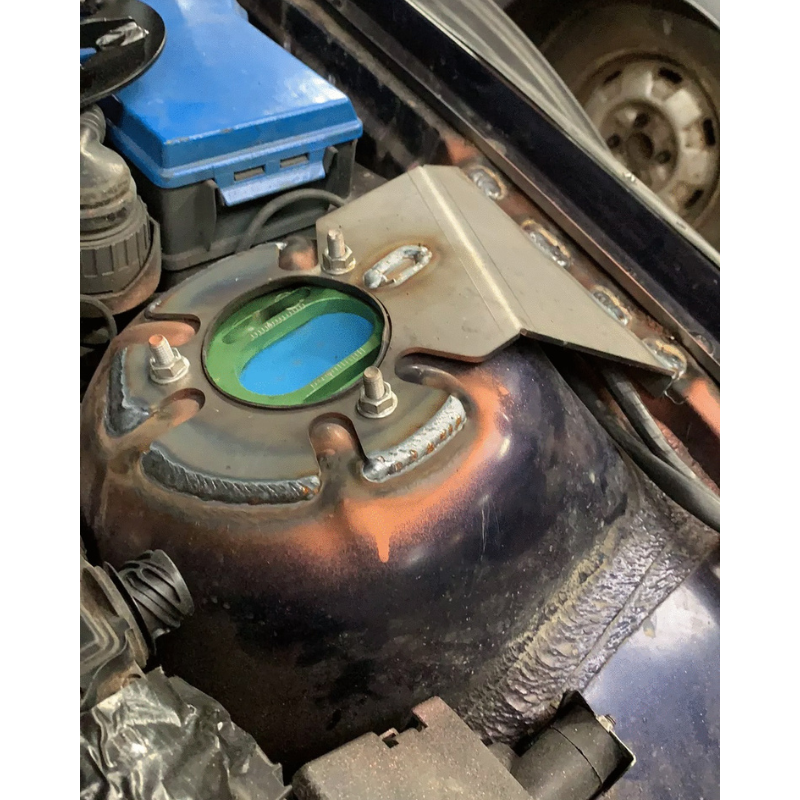

The reinforcement plates are designed to be welded into the BMW E36 front chassis structure, strengthening the connection between the front strut towers and adjacent inner wing areas.

Before installation, inspect the surrounding bodywork for cracks, corrosion, deformation and previous accident damage.

The mounting surfaces must be properly prepared before welding. Remove paint, underseal and other coatings from the required welding areas.

Position and align the reinforcement plates correctly before completing the welds.

After welding, clean and protect the repaired areas with suitable corrosion-resistant coatings.

Important: These plates are intended for structural reinforcement and are not a substitute for repairing damaged or weakened chassis metal.

Installation should be carried out by a qualified automotive fabricator experienced in structural chassis welding.
