BMW E36 Front Lower X-Brace – 4-Point H-Brace Chassis Reinforcement

BMW E36 Front Lower 4-Point X-Brace – H-Brace Chassis Reinforcement

Upgrade the front-end rigidity of your BMW E36 with this high-strength front lower 4-point X-Brace / H-Brace, designed to significantly improve handling precision, steering response and overall chassis stability.

Suitable for all engine variants and all body types of the BMW E36.

This brace connects the front axle carrier to the longitudinal frame rails, creating a stiff structural link that greatly reduces flex and improves control—especially important for lowered cars, drift setups and performance builds.

Key Benefits:

Increased torsional rigidity of the chassis

Sharper steering response & improved directional stability

More precise feedback to the driver

Perfect reinforcement for lowered or stiff suspension setups

No ABE, TÜV, or registration required

Weight: approx. 3.75 kg

Construction & Quality:

Professionally manufactured using motorsport-grade techniques:

Made from 40×20mm flat-oval steel tubing, 3mm wall thickness

CNC laser-cut and CNC press-bent for perfect accuracy

Welded using TIG for maximum strength and clean finishing

Finished in durable black powder coating

Designed for long service life—even under extreme conditions

This ensures perfect fitment, exceptional durability and a clean, professional appearance.

Installation:

Uses existing mounting points in the longitudinal members

Requires drilling two holes in the front axle carrier

Includes all required high-strength bolts and washers

Bolt-on installation – no welding needed

Designed to stiffen the front end without modifying geometry

This brace replaces the original stiffening tube and directly bolts to the front subframe near the steering rack.

Why Install a Front X-Brace?

Front-end flex is common on older E36 models, especially when running coilovers, stiffer sway bars, or solid bushings.

This X-Brace significantly improves:

Cornering stability

Steering accuracy

Front-end feedback

Overall driving precision

The result is a noticeably sportier, more direct driving experience.

Compatibility:

✔ BMW E36 – Coupé, Sedan, Touring, Compact, and Convertible

(Factory-installed on the Convertible; registration-free for all models)

What’s Included:

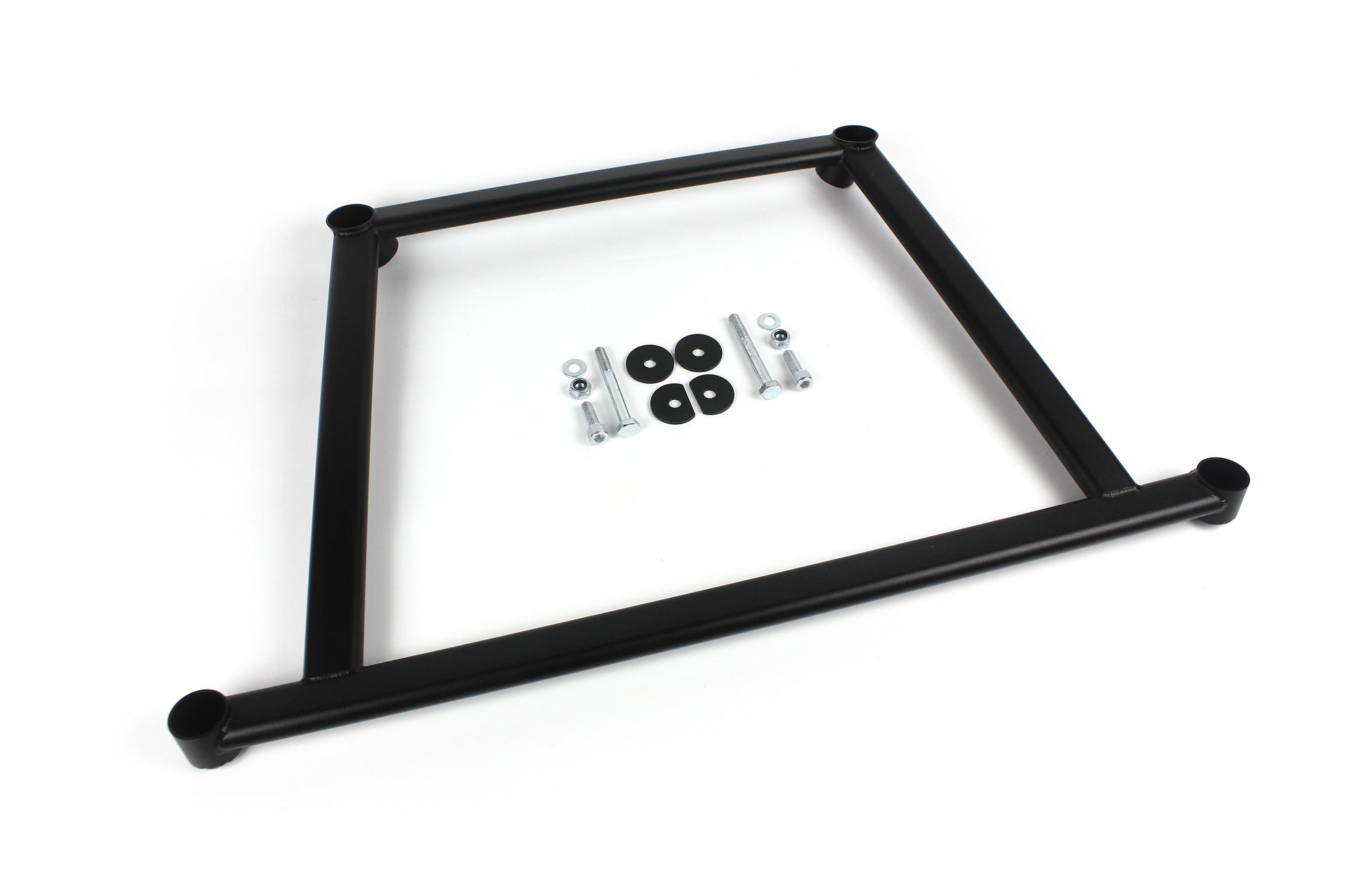

1x Front Lower X-Brace / H-Brace

High-strength mounting hardware set
