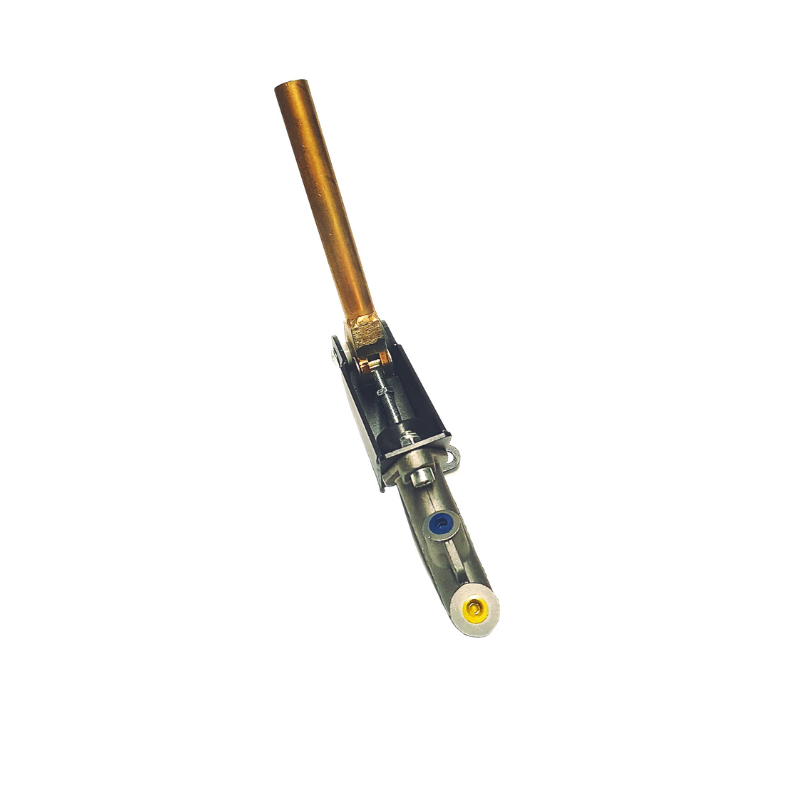

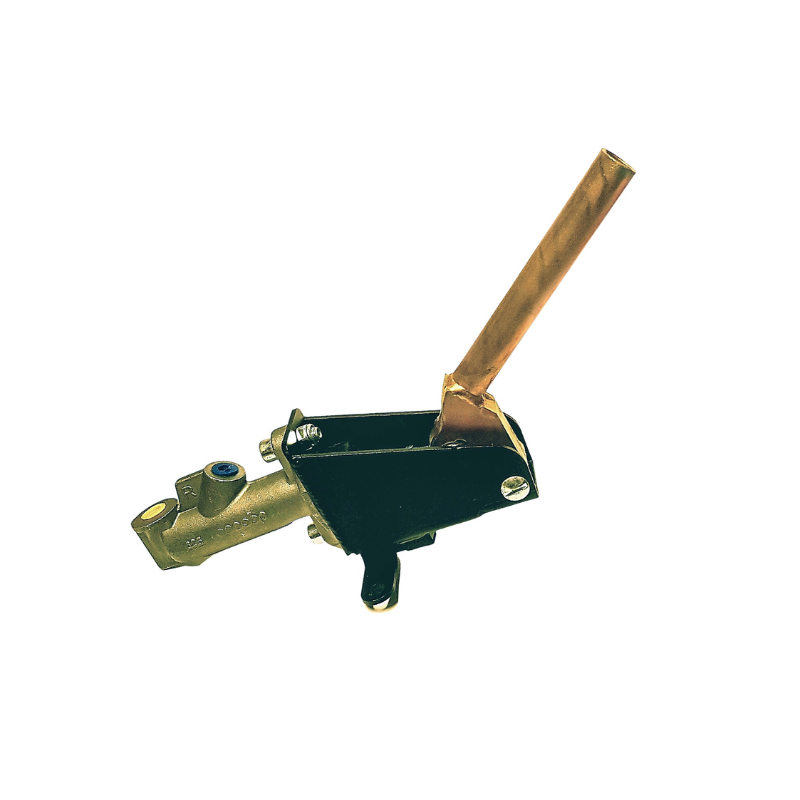

BMW E30 Hydraulic Handbrake Fly Off Extension

The BMW E30 Hydraulic Handbrake Fly-Off Kit is a bolt-on hydraulic handbrake conversion designed for left-hand-drive BMW E30 models, including European and US-market vehicles.

Developed for drifting, rallying and motorsport applications, this kit provides an accessible hydraulic handbrake lever position while retaining the original BMW E30 transmission tunnel mounting locations.

The assembly is designed to fit over the factory parking brake handle area and attach using the original handbrake mounting holes, providing a practical solution for motorsport builds without requiring a custom mounting bracket.

Equipped with an OBP 0.625-inch (15.86 mm) hydraulic master cylinder, the kit is intended for use with an additional set of rear brake calipers, creating a dedicated hydraulic handbrake circuit separate from the original service braking system.

The original handbrake cover can be fitted over the fly-off assembly, helping maintain a more integrated interior appearance.

For drivers requiring a longer lever, the handle can also be extended using an additional tube, which is not included.

Key Features:

- BMW E30-Specific Design – Designed for left-hand-drive BMW E30 vehicles.

- Bolt-On Installation – Uses the original handbrake mounting holes in the transmission tunnel.

- Fly-Off Hydraulic Handbrake – Designed for quick hydraulic handbrake operation during drifting and motorsport.

- OBP Hydraulic Master Cylinder – Supplied with a 0.625-inch (15.86 mm) master cylinder.

- Independent Rear Brake Circuit – Intended for use with an additional set of rear brake calipers.

- Accessible Lever Position – Designed to position the handle within convenient reach of the driver.

- Original Handbrake Cover Compatibility – The factory handbrake cover can be fitted over the fly-off assembly.

- Extendable Handle – Can be extended using an additional tube if required (not included).

- Motorsport Applications – Suitable for drifting, rallying, racing and custom performance builds.

Vehicle Compatibility:

- BMW E30 – 3 Series, left-hand drive (LHD)

- BMW E30 – European-market LHD models

- BMW E30 – US-market LHD models

Important: Designed for left-hand-drive BMW E30 vehicles only. Right-hand-drive compatibility has not been confirmed.

Technical Specifications:

- Product Type: Hydraulic handbrake fly-off conversion kit

- Vehicle Compatibility: BMW E30 LHD

- Installation Position: Original parking brake mounting area / transmission tunnel

- Mounting Method: Bolt-on, using original mounting holes

- Master Cylinder Brand: OBP

- Master Cylinder Bore: 0.625 inch (15.86 mm)

- Master Cylinder Inlet Thread: 3/8" UNF

- Master Cylinder Outlet Thread: 7/16" UNF

- Hydraulic Configuration: Dedicated circuit with additional rear brake calipers

- Handle Extension Tube: Not included

- Item Weight: 1.25 kg

- Application: Drift / rally / racing / motorsport

Hydraulic System Requirements:

This hydraulic handbrake is designed to operate an additional set of rear brake calipers through a separate hydraulic circuit.

To complete the installation, the vehicle requires:

- An additional set of compatible rear brake calipers.

- Suitable dual caliper mounting brackets or adapters.

- Compatible hydraulic brake lines and fittings.

- A suitable brake fluid reservoir and supply connection for the master cylinder.

The hydraulic circuit must be correctly connected and bled before use.

The additional rear calipers allow the hydraulic handbrake to operate independently of the original service brake hydraulic circuit when installed correctly.

Installation Information:

The fly-off handbrake assembly is designed to attach to the original BMW E30 parking brake mounting points in the transmission tunnel.

The factory handbrake cover can be positioned over the installed assembly, subject to interior configuration and clearance.

An additional handle extension tube can be fitted if required, but is not supplied with the kit.

Important: The hydraulic handbrake must be installed as part of a correctly designed and tested braking system. It is not a substitute for a compliant mechanical parking brake.

Installation requires appropriate brake components, secure hydraulic connections and professional brake system bleeding.

Professional installation by a qualified motorsport brake specialist is strongly recommended. Check applicable regulations before using the vehicle on public roads.
