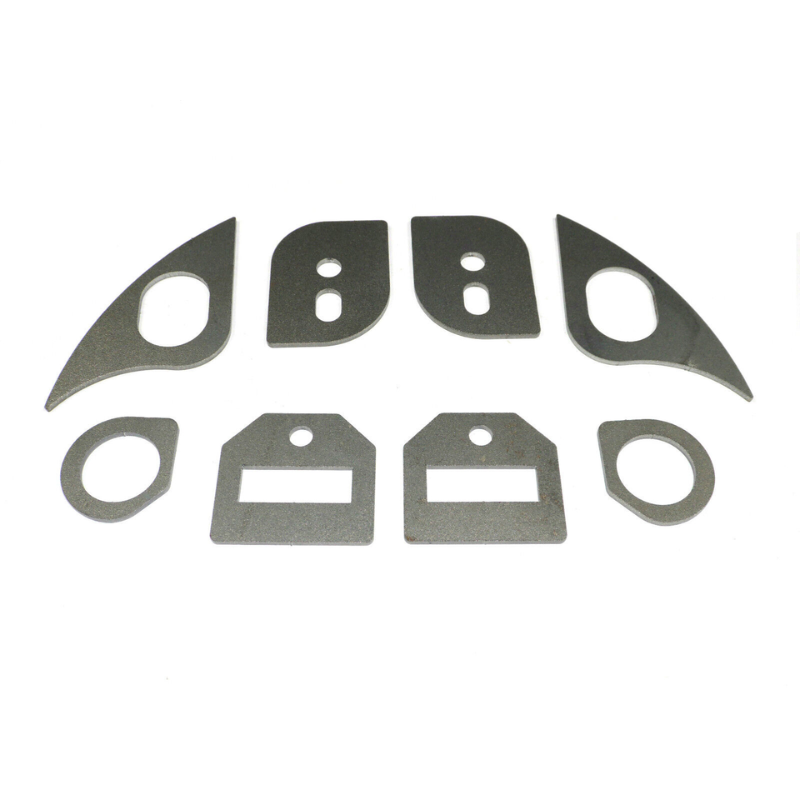

BMW E30 Front Subframe Reinforcement Kit

The BMW E30 Front Subframe Reinforcement Kit is a weld-in steel reinforcement set designed to strengthen the original front subframe of the BMW E30 3 Series.

Manufactured from 3 mm steel, this kit is designed to reinforce high-stress areas of the front subframe that may develop fatigue, cracks or structural damage over time, particularly on vehicles subjected to demanding driving conditions.

During drifting, track driving and motorsport use, the front subframe experiences repeated suspension and drivetrain loads. Additional reinforcement helps strengthen vulnerable sections of the subframe and reduce the risk of localised cracking and deformation.

The reinforcement plates can be used for preventative strengthening or as part of a professional repair of an existing cracked front subframe.

Each component is precision laser-cut and CNC-bent for consistent manufacturing accuracy.

All reinforcement components require welding and must be installed before the front subframe is refitted to the vehicle.

Key Features:

- Front Subframe Reinforcement – Designed to strengthen vulnerable areas of the BMW E30 front subframe.

- 3 mm Steel Construction – Manufactured from steel for structural reinforcement.

- Helps Reduce Cracking and Fatigue – Reinforces areas exposed to repeated suspension and drivetrain loads.

- Suitable for Structural Repairs – Can be incorporated into professional repairs of cracked or weakened subframes.

- Precision Laser-Cut Components – Manufactured for consistent dimensions and fitment.

- CNC-Bent Steel Plates – Formed to suit the intended reinforcement areas.

- Weld-In Installation – Designed for permanent attachment to the original front subframe.

- Motorsport Applications – Suitable for drifting, track driving and performance builds.

- Restoration and Chassis Preparation – Suitable for reinforcing ageing BMW E30 front subframes during refurbishment.

Vehicle Compatibility:

- BMW E30 – 3 Series

Designed for compatible BMW E30 front subframe assemblies.

Fitment Note: Compatibility with the BMW E30 325iX all-wheel-drive front subframe has not been confirmed. Check the subframe configuration before ordering.

Technical Specifications:

- Product Type: Front subframe reinforcement kit

- Material: Steel

- Steel Thickness: 3 mm

- Manufacturing Method: Laser-cut and CNC-bent

- Installation Position: Front subframe

- Installation Method: Weld-in

- Application: Front subframe strengthening / structural repair / motorsport preparation

- Vehicle Compatibility: BMW E30

Installation Information:

Welding is required. This is not a bolt-on reinforcement kit.

All reinforcement plates must be positioned and welded to the front subframe before the assembly is installed or reinstalled on the vehicle.

The front subframe should be removed to allow proper access, inspection, preparation and welding.

Before installation, inspect the subframe for cracks, corrosion, deformation and previous repairs.

Any existing cracks or structural damage must be correctly repaired before reinforcement plates are welded into position. Welding reinforcement plates over unrepaired cracks is not an adequate structural repair.

Professional installation by an experienced automotive fabricator or qualified welder is strongly recommended.

Important: This kit reinforces the removable front subframe itself. It is not a front strut tower reinforcement kit or a chassis-mounted subframe reinforcement kit.
