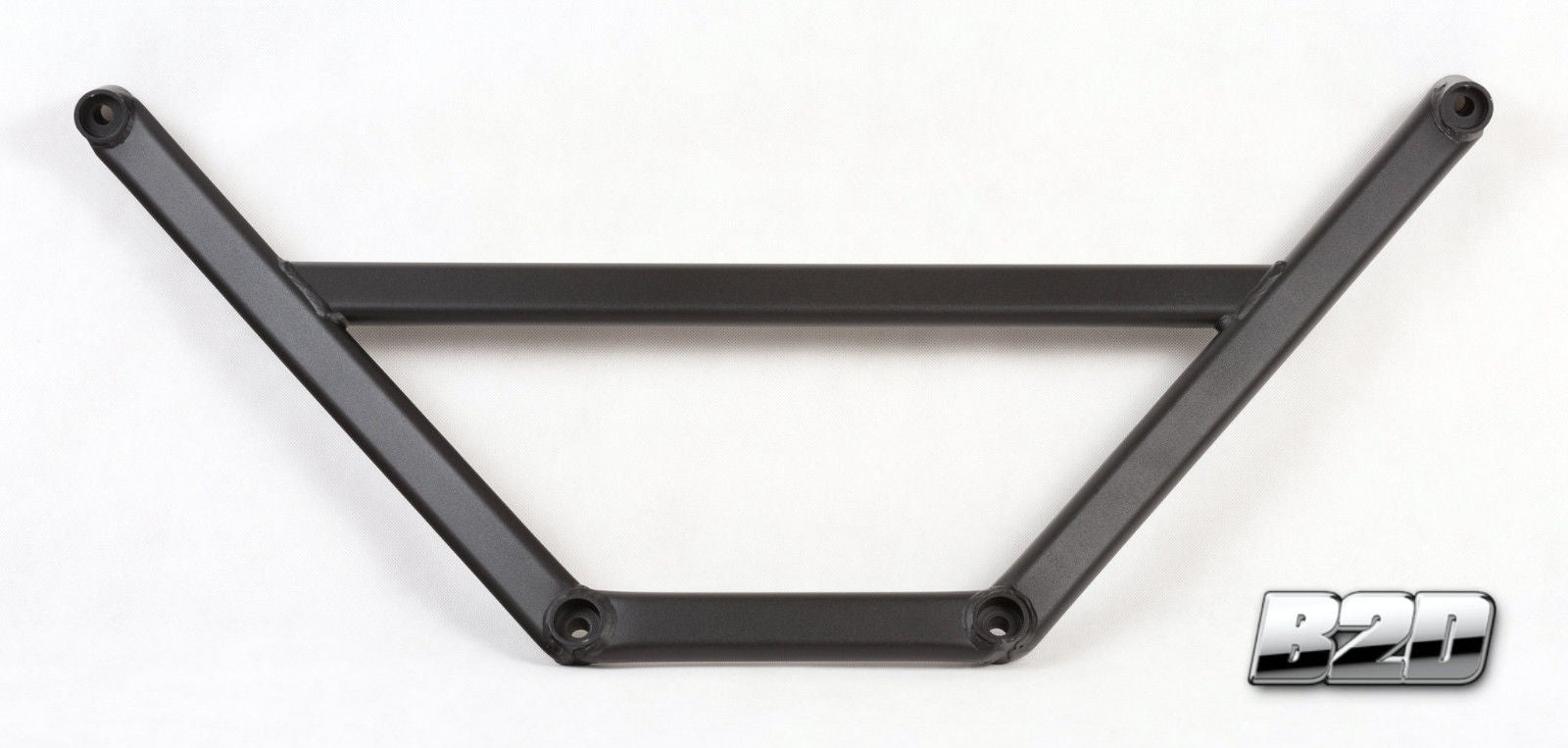

BMW E30 Front Lower Brace

Front lower brace for the BMW E30

(not compatible with the 325IX AWD model).

This brace significantly stiffens the lower section of the chassis, improving handling, stability, and steering precision. It prevents unwanted changes in suspension geometry and is especially recommended for cars with modified suspension or increased body load.

Installation is very simple – the front mounts to the steering rack bolts, while the rear attaches at the control arm bushing mounts. The brace is fully bolt-on, meaning no welding, no ABE, and no registration approval is required.

The brace is made from a 40 × 20 mm flat-oval profile with a 3 mm wall thickness, providing excellent rigidity and durability. All components are CNC laser-cut, the bushings are CNC-milled, and the brace is TIG-welded.

The lower brace is fully compatible with our oil pan skid plate, available in our other listings—save when purchased as a set.

Made of Steel.
