BMW E30 E36 Z3 Front Control Arm Adjusters

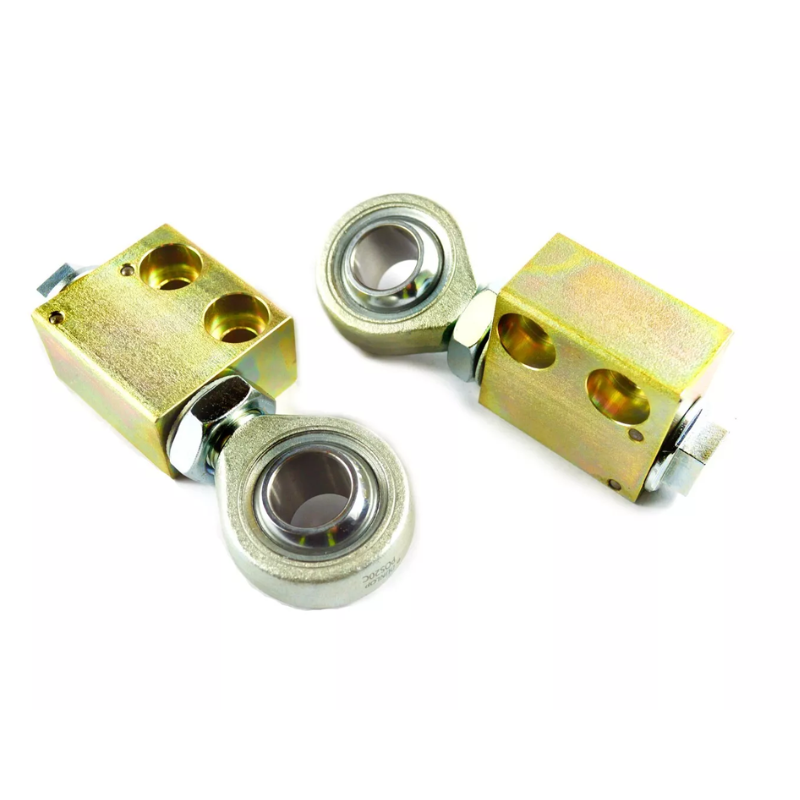

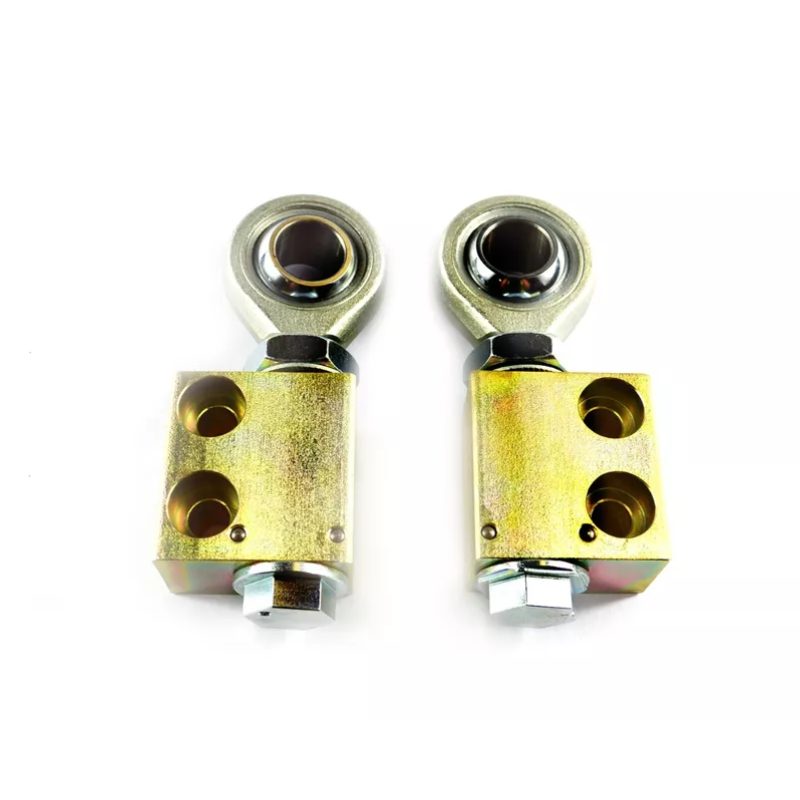

The BMW E30 E36 Adjustable Front Control Arm Bushings (Lollipop Kit) are designed to provide adjustable front suspension geometry for BMW E30 and E36 drift, track and motorsport builds.

Manufactured from steel and equipped with high-quality bearings, these adjustable front control arm mounts replace conventional rubber-bushed mounting arrangements with a more rigid connection between the front control arm and chassis.

The adjustable design allows changes to the front control arm position, helping fine-tune caster and front wheel positioning to suit different driving requirements.

Unlike fixed-position control arm bushings, these adjustable lollipop mounts allow suspension geometry adjustments without removing the complete mounting assembly from the vehicle.

The rigid, bearing-supported construction helps reduce unwanted compliance in the front control arm mounting points, providing more direct steering feedback and consistent suspension response.

Supplied as a set of two adjustable mounts, suitable for compatible BMW E30 and E36 front suspension configurations.

Key Features:

- Adjustable Front Suspension Geometry – Allows adjustment of front control arm positioning.

- Caster Adjustment – Helps fine-tune front suspension caster settings.

- Front Wheel Position Adjustment – Allows changes to wheel positioning within the available adjustment range.

- Adjustable Without Removal – Designed to allow adjustments while the mounts remain installed.

- Rigid Control Arm Connection – Reduces unwanted movement compared with conventional rubber bushings.

- More Direct Steering Response – Reduced mounting compliance can improve steering feedback.

- High-Quality Bearings – Bearing-supported construction for controlled suspension movement.

- Steel Construction – Manufactured from steel for demanding suspension applications.

- Motorsport Applications – Suitable for drifting, track driving and performance builds.

- Pair Included – Supplied as two adjustable front control arm mounts.

Vehicle Compatibility:

- BMW E30 – 3 Series

- BMW E36 – 3 Series

Designed for compatible BMW E30 and E36 front control arm mounting arrangements.

Fitment Note: Verify compatibility with your vehicle's control arms, front subframe and suspension configuration before ordering, particularly on M3 models or vehicles with modified suspension components.

Technical Specifications:

- Product Type: Adjustable front control arm bushings / lollipop mounts

- Material: Steel

- Bearing Type: Bearing-supported

- Adjustment: Front control arm position / caster geometry

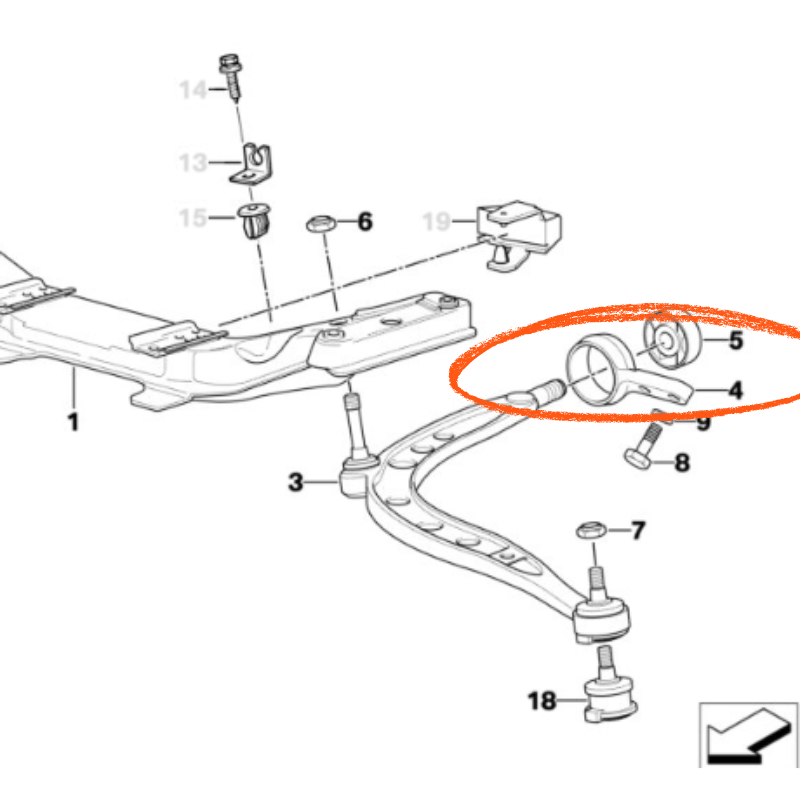

- Installation Position: Front control arm rear mounting points

- Quantity: 2 pieces

- Vehicle Compatibility: BMW E30 / BMW E36

- Application: Front suspension geometry adjustment / drifting / motorsport

Installation Information:

These adjustable lollipop mounts are designed to replace the original front control arm rear mounting assemblies on compatible BMW E30 and E36 vehicles.

After installation, the adjustable mechanism allows front suspension geometry to be fine-tuned without removing the complete mounting assembly.

Both sides should be adjusted carefully to achieve the intended suspension setup.

A professional wheel alignment is required after installation and following any geometry adjustments.

Check tyre clearance, steering operation, suspension travel and component interference throughout the available adjustment range.

Important: Rigid bearing-supported mounts transmit more road noise, vibration and harshness (NVH) than standard rubber bushings. Professional installation and suspension setup are recommended.
