BMW E30 E36 E46 Z3 Z4 M3 Rear Shock Top Strut Mounts

The BMW Reinforced Rear Shock Top Mounts are heavy-duty rear suspension mounting components designed for BMW E30, E36, E46, Z3 and Z4 models, including compatible M3 applications.

Manufactured for demanding road, performance and motorsport use, these upgraded rear shock absorber mounts feature 80 Shore A (80ShA) rubber bushings and reinforced 8 mm steel construction.

Designed as an alternative to standard rubber shock mounts, they combine a rigid steel housing and frame with high-hardness rubber to help control unwanted movement at the upper rear shock absorber mounting points.

The rubber compound is specified for resistance to temperature and wear, providing a durable alternative to conventional rubber or polyurethane mount designs.

The steel components are manufactured with galvanised bushings and nuts for additional surface protection.

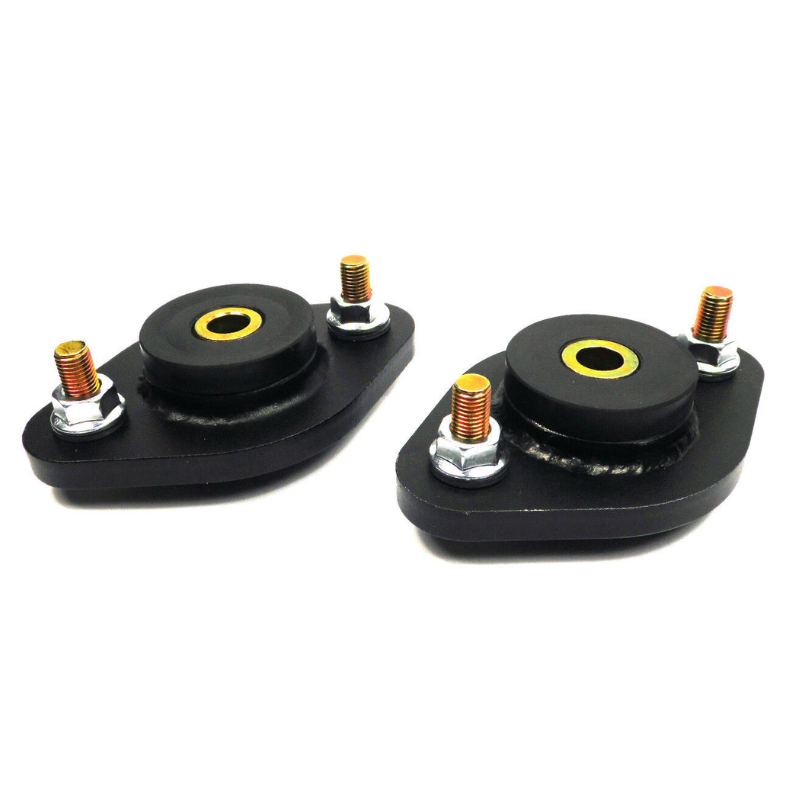

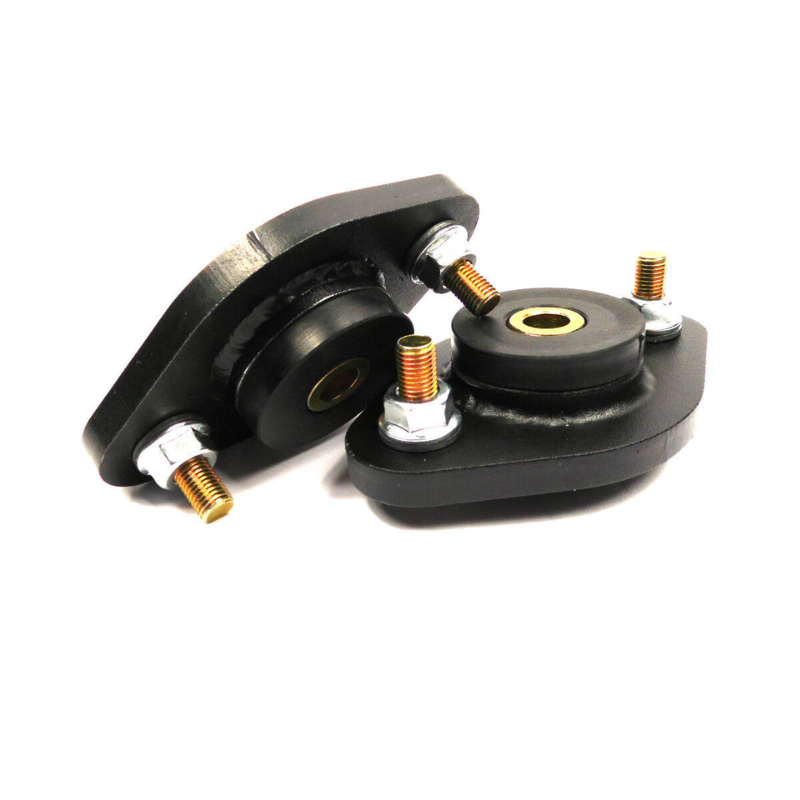

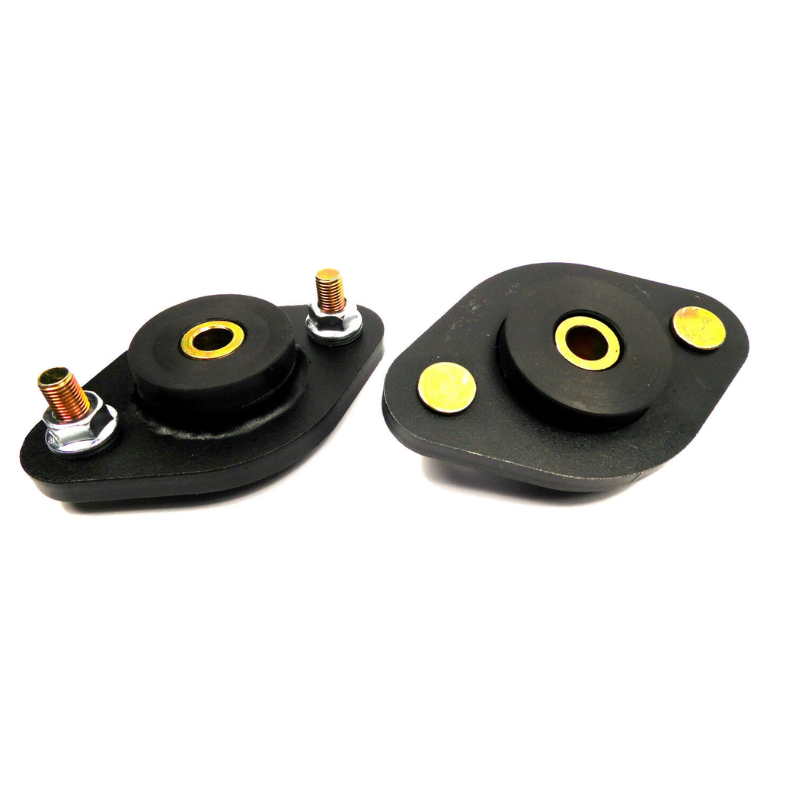

Supplied as a pair of two rear shock top mounts.

Key Features:

- Reinforced Rear Shock Mounts – Upgraded upper rear shock absorber mounting components.

- 80ShA Rubber Bushings – High-hardness rubber designed to control unwanted suspension movement.

- 8 mm Steel Construction – Reinforced steel housing and frame.

- Galvanised Components – Galvanised bushings and nuts for additional corrosion protection.

- Rubber Construction – Alternative to polyurethane rear shock mounting designs.

- Motorsport Applications – Suitable for performance builds, drifting and track applications.

- Pair Supplied – Includes 2 rear shock top mounts.

Vehicle Compatibility:

- BMW E30

- BMW E36

- BMW E46

- BMW Z3

- BMW Z4

- BMW M3 – Compatible applications within the listed chassis ranges

Fitment Note: Confirm rear shock absorber mounting compatibility before ordering, particularly for M3 models and vehicles with aftermarket suspension.

Technical Specifications:

- Product Type: Rear shock absorber top mounts / rear upper shock mounts

- Installation Position: Rear suspension

- Quantity: 2 pieces (pair)

- Housing Material: Steel

- Frame Material: Steel

- Steel Thickness: 8 mm

- Bushing Material: Reinforced rubber compound

- Rubber Hardness: 80 Shore A (80ShA)

- Bushings and Nuts: Galvanised

- Application: Performance road use / motorsport

Installation Information:

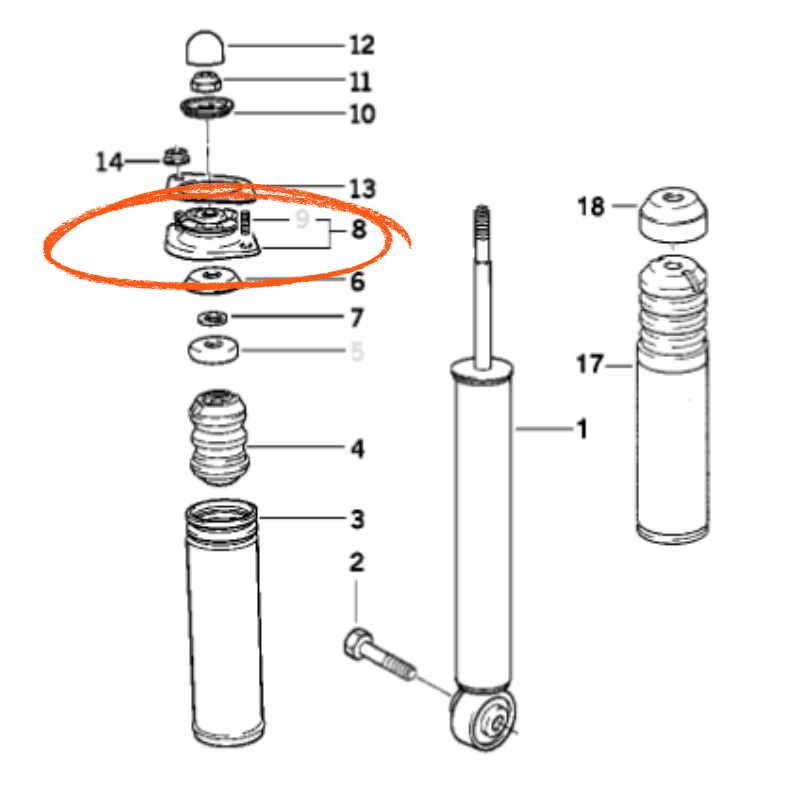

These mounts replace the rear upper shock absorber mounting components and are intended to provide a firmer mounting arrangement than conventional soft rubber mounts.

Important: The 80ShA rubber compound is relatively firm and may transmit more vibration or noise into the vehicle compared with standard rubber mounts.

Check shock absorber compatibility and mounting dimensions before installation. Professional installation is recommended for suspension components.
